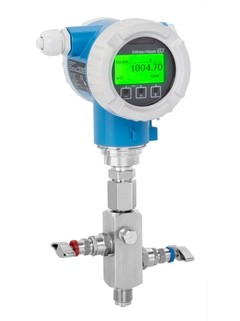

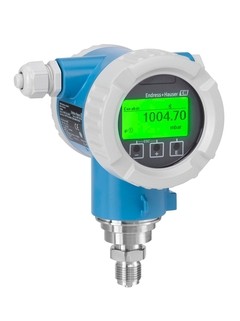

PMP71B Cerabar pressure transmitter replace PMP71

PMP71 is discontinued,replaced by PMP71B.

Field of application

This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

• Pressure measuring range: up to 700 bar (10500 psi)
• Process temperatures up to 400°C (752 °F) with diaphragm seal
• Accuracy: up to +/- 0.025%

Benefits

• With Heartbeat Technology you are able to verify the health of the device while the process is running.
• Simple indication of device status - display changes from green to red when diagnostic messages occur
• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
• Wireless control of the device in the process area with the SmartBlue App


• • Measuring principle

    Absolute and gauge pressure

  • Characteristic

    Pressure transmitter with metallic process diaphragm.

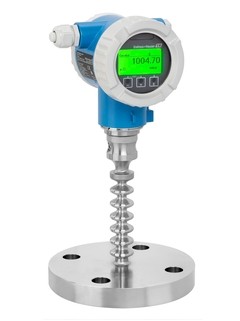

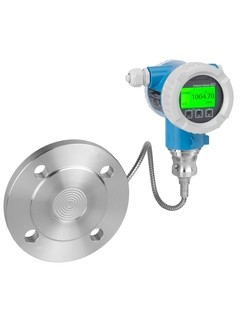

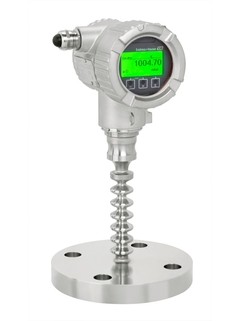

    Available with diaphragm seals.
    Device health verification without process interruptions.
    Intuitive and clear wizards for commissioning, proof tests and verification.

  • Supply voltage

    4...20 mA HART
    Ex d, Ex e, non-Ex:
    10.5...35V DC :
    Ex i: 10.5...30V DC

  • Reference Accuracy

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.025 %

  • Long term stability

    0.05 % of URL/ year
    0.07 % of URL/ 5 years
    0.10 % of URL/ 10 years

  • Process temperature

    Standard:
    -40°C…+125°C
    (-40°F…+257°F)
