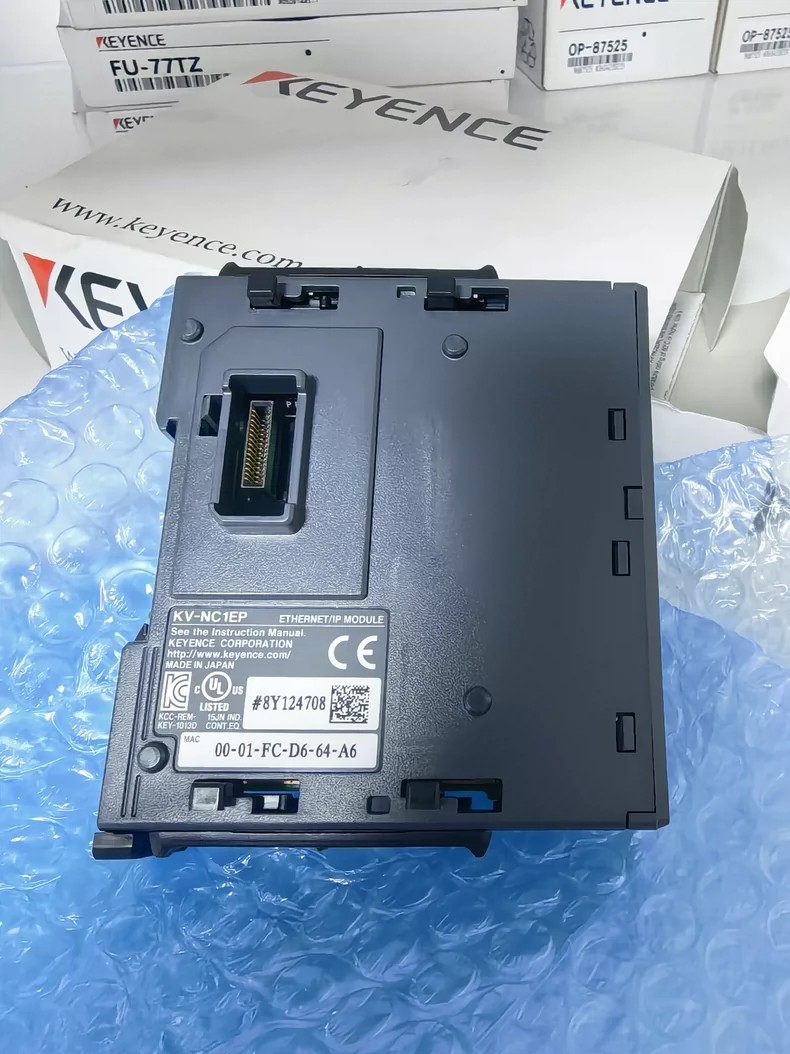

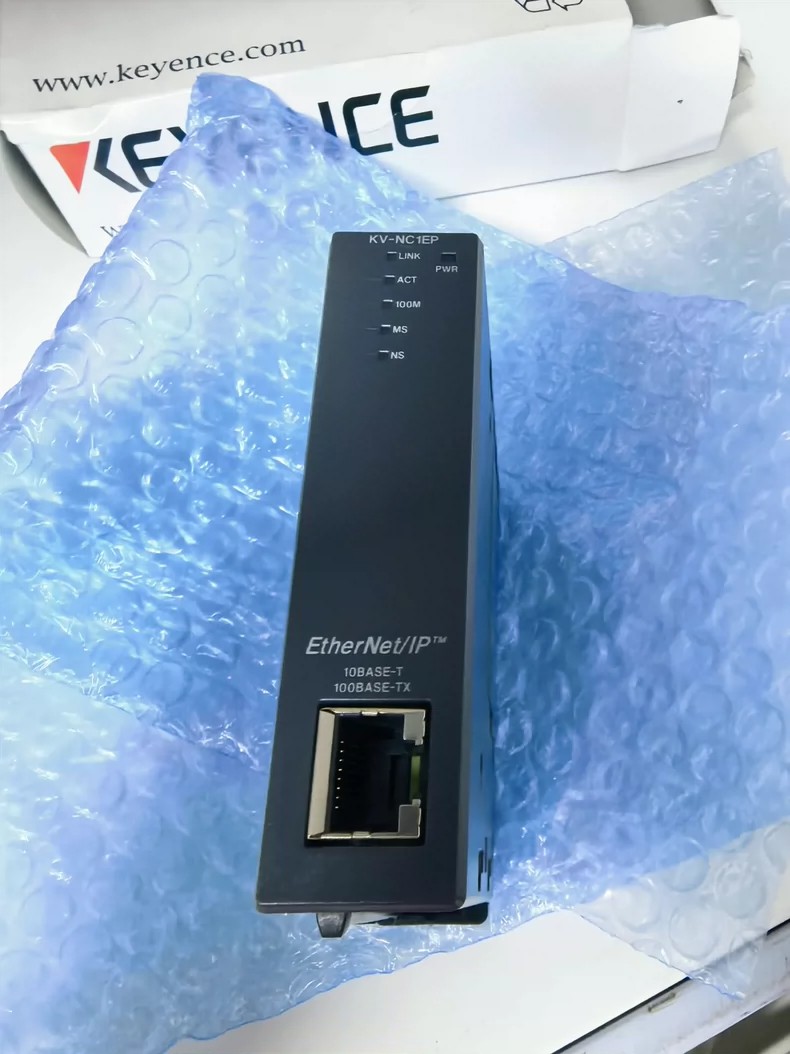

Model |
||||
EtherNet/IP™ unit (communication specifications) |
CIP service |
Cyclic communication |
Number of connections |
64*1 |
RP I (communication cycle) |
0.5 to 10000 ms (0.5 ms increments) Setting is possible for each connection. |
|||
Transmission trigger: Output to the adapter |
Cyclic |
|||
Transmission trigger: Input from the adapter |
Cyclic/Change Of State*2 |
|||
Tolerable communication bandwidth for cyclic communication (@504 bytes) |
6000 (pps)*3 |
|||
Tolerable communication bandwidth for cyclic communication (@1444 bytes) |
3000 (pps)*3 |
|||
Maximum number of refresh words |
8000 words |
|||
Maximum data size per connection |
504 bytes or 1444 bytes*4 |
|||
Multicast filter function |
Provided (IGMP client function)*5 |
|||
Message communication |
Class 3 (connection type): Server |
No. of connections: 64*6 |
||
UCMM (non-connection type): Client |
No. of simultaneous messages: 32 |
|||
UCMM (non-connection type): Server |
No. of simultaneous messages: 96 |
|||
EtherNet/IP™ conformance test |
Conforming to CT10 |
|||
EtherNet/IP™ unit (performance specifications) |
PC applications |
No. of sockets TCP: 8 UDP: 0 Port No.: 8500 (can be set within the range between 1 and 65535) *7 |
||
Host link communication |
No. of sockets TCP: Total: 15 UDP: 1 Port No.: 8501 (can be set within the range between 1 and 65535) *8*9 |
|||
MC protocol communication |
No. of sockets TCP: Total: 15 UDP: 1 Port No.: 5000 (can be set within the range between 1 and 65535) *10*8*9 |
|||
VT3 connection |
No. of sockets TCP: 0 UDP: 1 Port No.: 8502 (can be set within the range between 1 and 65535) |
|||
FTP server |
No. of sockets TCP: 4 Port No.: 20, 21 |
|||
Clock data automatic adjustment |
No. of sockets UDP: 1 Port No.: 123 |
|||
DNS |
No. of sockets UDP: 1 Port No.: 53 |
|||
FTP client |
No. of sockets TCP: 2 Port No.: 20, 21 (can be set within the range between 1 and 65535) |
|||
Easy PLC link |
No. of sockets UDP: 1 Port No.: 5001 (can be set within the range between 1 and 65535) |
|||
EtherNet/IP™ cyclic communication function |
No. of sockets TCP: Total: 320 UDP: 1 Port No.: 2222 |
|||
EtherNet/IP™ message communication function |
No. of sockets TCP: Total: 320 UDP: 1 Port No.: 44818 |
|||
Internal current consumption |
90 mA or less |
|||
Weight |
Approx. 110 g |
|||
*1 The number of connection may exceed 64 where the KV-NC1EP is connected with the multicast of cyclic communication from the originator. The operation of the KV-NC1EP, however, is guaranteed up to 64 connections. |
