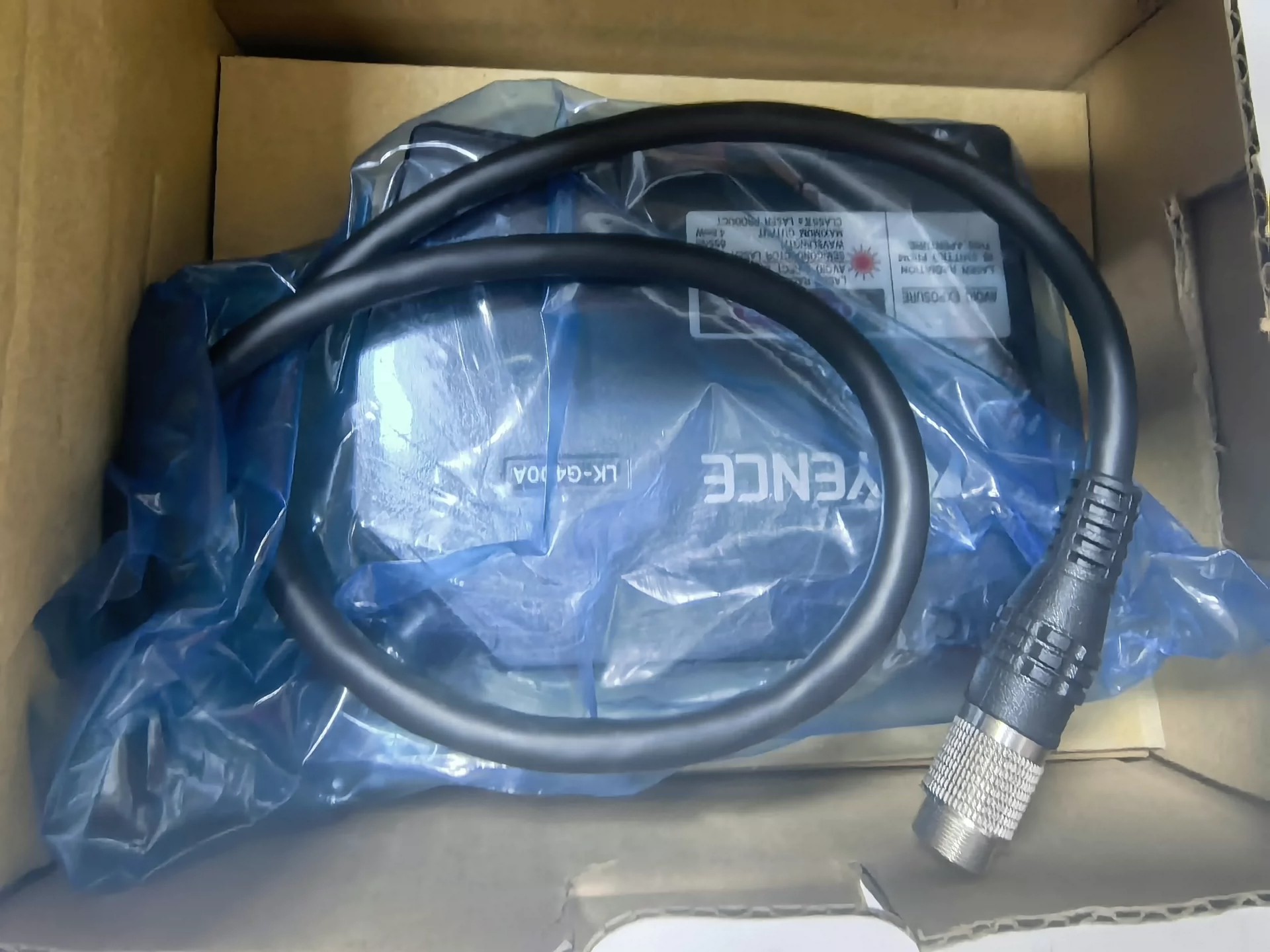

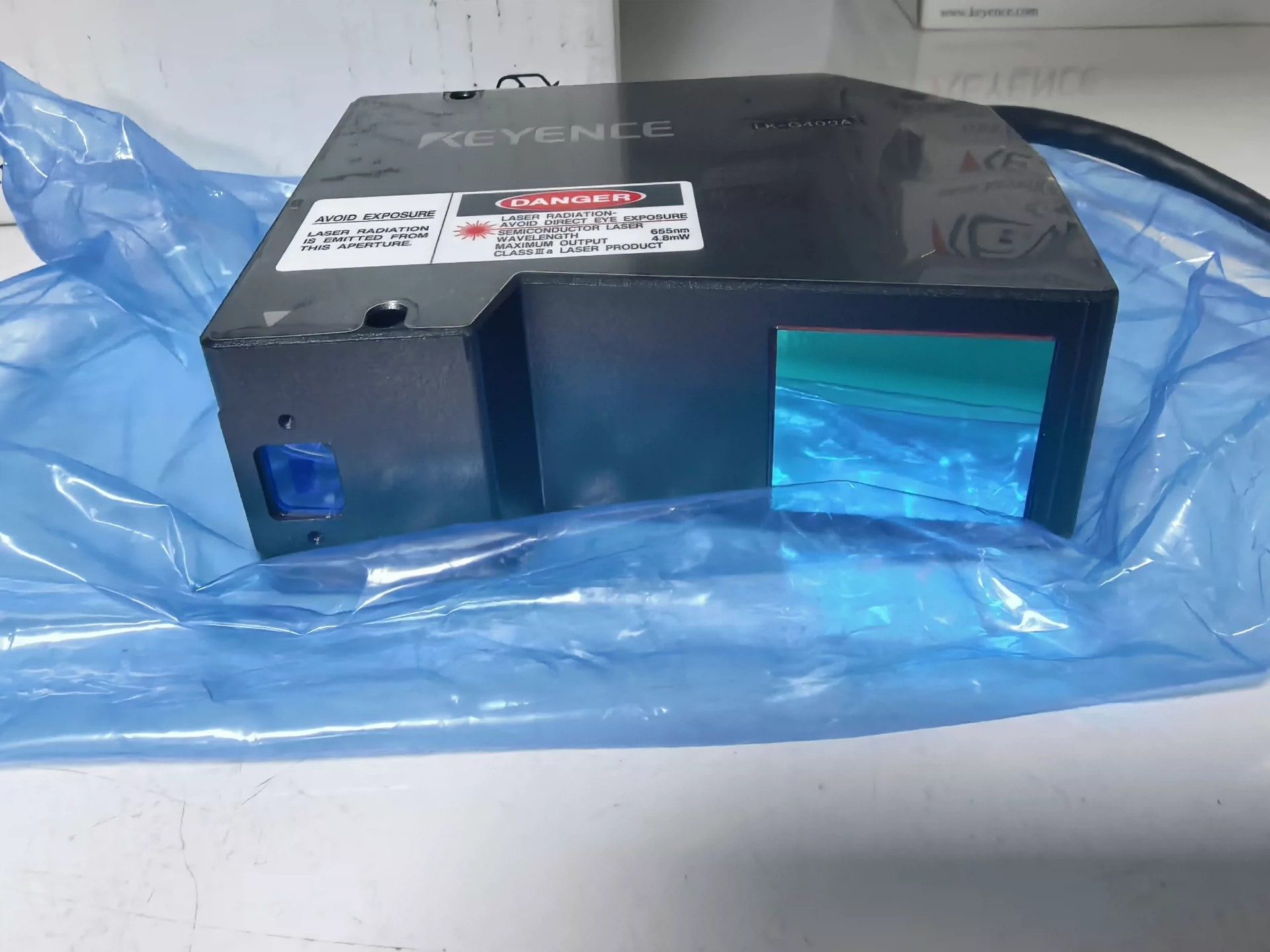

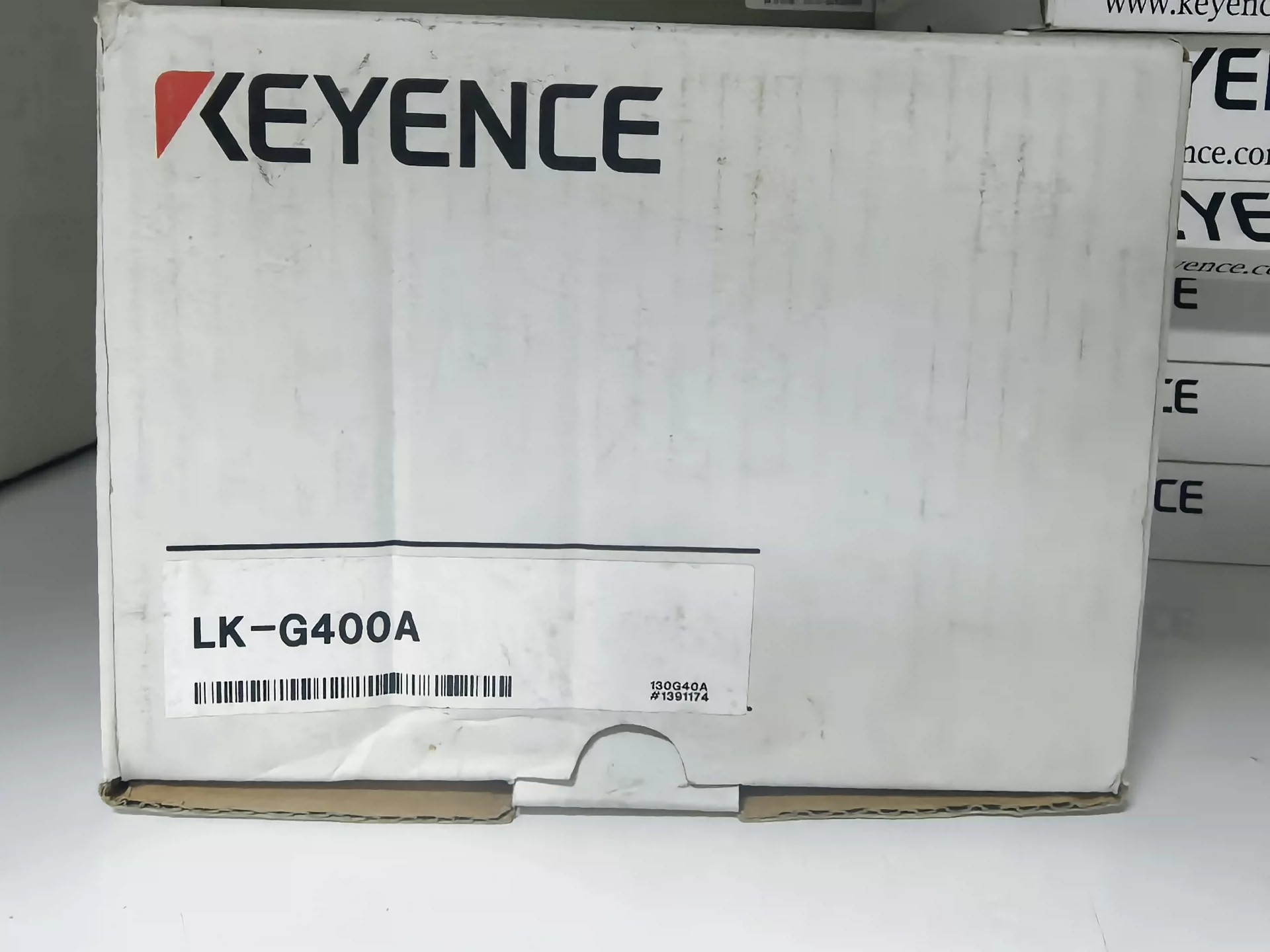

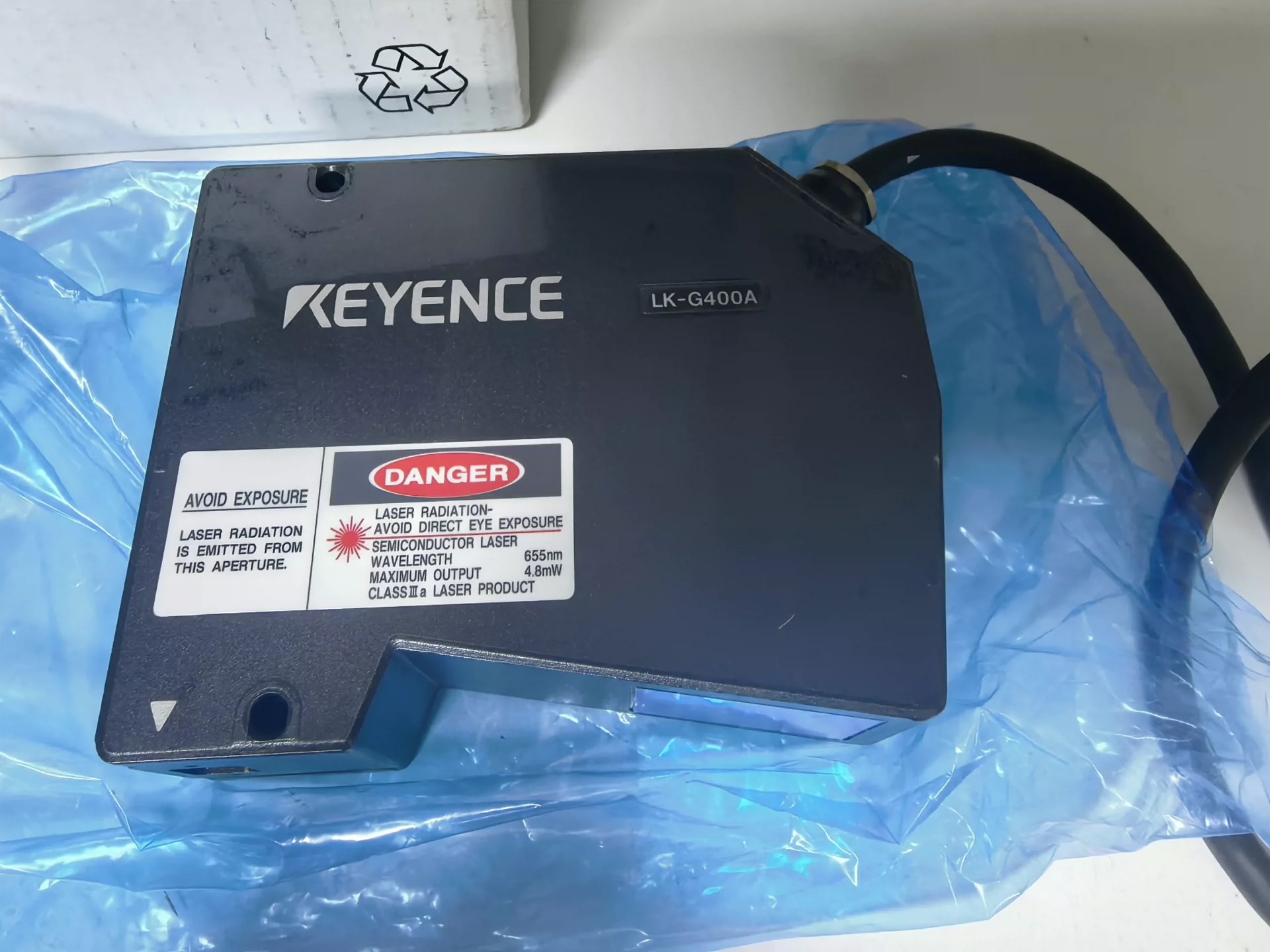

KEYENCE LK-G400A Sensor Head Spot Type

Model

LK-G400

Reference distance

400 mm (Diffuse reflection),398 mm (Specular reflection)

Measuring range

±100 mm (Diffuse reflection),±99 mm (Specular reflection)

Light source

Type

Red semiconductor laser

Wavelength

655nm (Visible light), Class 3R laser product (JIS C6802)

Laser Class

Class 3R (IEC 60825-1), Class IIIa (FDA CDRH Part 1040.10)

Output

4.8 mW maximum

Spot diameter (at reference distance)

Approx. ø290 µm

Linearity

±0.05% of F.S.(F.S.= ±100 mm)*1

Repeatability

2 µm*2

Sampling frequency

20/50/100/200/500/1,000 µs (Selectable from 6 levels)

LED display

Near the centre of the measurement: Green lights
Within the measurement area: Orange lights
Outside the measurement area: Orange flashing

Temperature characteristics

0.01% of F.S./˚C (F.S.= ±100 mm)

Environmental resistance

Enclosure rating

IP67 (IEC60529)

Ambient light

Incandescent lamp or Fluorescent lamp: 10,000 lux max.

Ambient temperature

0 to +50 °C

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Material

Aluminium die-cast

Weight

Approx. 380 g (including the cable)
