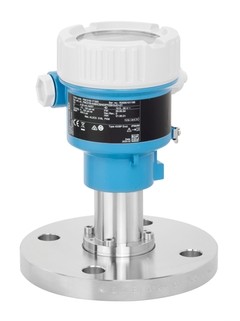

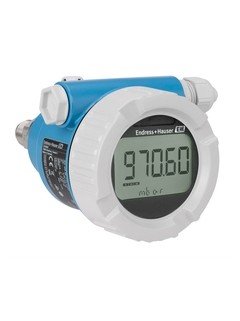

PMC51B Cerabar pressure transmitter replace PMC51

Field of application

This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.

The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

• Pressure measuring range: up to 40 bar (600 psi)

• Fully vacuum resistant up to +100°C (212°F) process temperature

• Accuracy: up to +/-0.055%

Benefits

• Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

• Reduce on site accidents and protect equipment when instruments are in difficult to reach areas

• Measuring principle

  Absolute and gauge pressure

• Characteristic

  Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases.
  Intuitive and clear wizard for commissioning

• Supply voltage

  Ex d, Ex e, non-Ex:
  10.5...35V DC
  Ex i: 10.5...30V DC

• Reference Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Long term stability

  0.10% of URL/ year
  0.25% of URL/ 5 years
  0.40% of URL/ 10 years

• Process temperature

  -40°C...+100°C
  (-40°F...+212°F)

• Ambient temperature

  -40°C...+85°C
  (-40°F...+185°F)

• Measuring cell

  100 mbar...40 bar
  (1.5 psi...600 psi)

• Smallest calibratable span

  5 mbar (0.075 psi)

• Vacuum resistance

  0 mbar abs.

• Max. Turn down

  100:1

• Max. overpressure limit

  60 bar (900 psi)

• Process connection

  Thread:
  G1/2...G2, R1/2, MNPT1/2...MNPT2,
  FNPT1/2
  Flange:
  DN25...DN80,
  NPS 1"...4"

• Material process membrane

  Ceramic

• Material gasket

  FKM, EPDM, HNBR, FFKM

• Fill fluid

  none, dry measuring cell

• Material housing

  Aluminium

• Communication

  4...20 mA,
  4...20 mA HART
  PROFINET with Ethernet-APL
  Bluetooth® wireless
  technology and app (optional)

• Certificates / Approvals

  ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex

• Safety approvals

  SIL

• Design approvals

  EN10204-3.1
  NACE MR0175,
  NACE MR0103

• Drinking water approvals

  NSF, KTW

• Specialities

  Bluetooth® Operation and maintenance SmartBlue App,
  RFID TAG for easy identification,
  Plug and play functionalities
