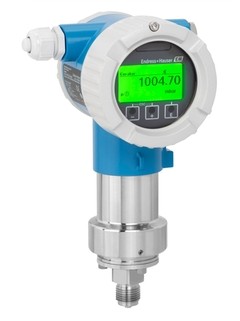

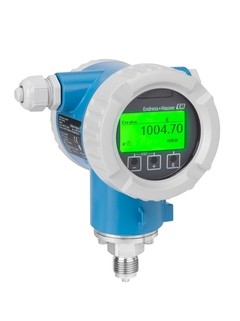

PMC71B Cerabar pressure transmitter replace PMC71

Field of application

This transmitter belongs to the new Cerabar generation. The device is robust and can be remotely controlled via app on a tablet using a secure Bluetooth connection. It allows condition based maintenance as well.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.

Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

• Pressure measuring range: up to 40 bar (600 psi)

• Fully vacuum resistant up to +150°C (302°F) process temperature

• Accuracy: up to +/- 0.025%

Benefits

• With Heartbeat Technology you are able to verify the health of the device while the process is running.

• Simple indication of device status - display changes from green to red when diagnostic messages occur

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

• Wireless control of the device in hard to reach process areas with the SmartBlue App

• Measuring principle

  Absolute and gauge pressure

• Characteristic

  Premium accuracy pressure transmitter with dry ceramic cell.
  Intuitive and clear wizards for commissioning, proof tests and verification.

• Supply voltage

  Ex d, Ex e, non-Ex:
  10.5...35V DC
  Ex i: 10.5...30V DC

• Reference Accuracy

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.025 %

• Long term stability

  0.05 % of URL/ year
  0.08 % of URL/ 5 years
  0.10 % of URL/ 10 years

• Process temperature

  -40°C...+150°C
  (-40°F...+302°F)

• Ambient temperature
