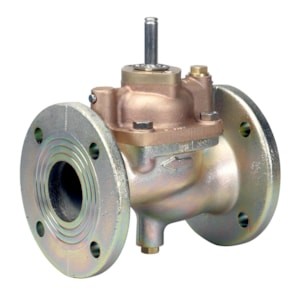

Solenoid valve EV220B 016D6065

Product details

Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Application	Open
Body material	Cast iron
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection material	Cast iron
Connection size [in]	2 1/2 in
Connection standard	EN 1092-1
Connection type	Flange
Contains batteries	No
Cv value [gal/min]	58.1 gal/min
Differential pressure [bar] [max]	10 bar
Differential pressure [bar] [min]	0.25 bar
Differential pressure [psi] [max]	145 psi
Differential pressure [psi] [min]	3.6 psi
Est. time to close, water [ms]	7000 ms
Est. time to open, water [ms]	5000 ms
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Function	NC

Kv value [m³/h]	50 m³/h
Max media viscosity [cSt]	50 cSt
Max. test pressure [bar]	15 bar
Max. test pressure [psig]	218 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media recommendations	Water & Brine
Media tolerance comments	Neutral media
Medium temperature range [°C] [max]	90 °C
Medium temperature range [°C] [min]	-25 °C
Medium temperature range [°F] [max]	194 °F
Medium temperature range [°F] [min]	-13 °F
Number of ways	2/2
Open/close equalizing orifice	Optional Equalization orifice
Operation	Servo-operated (piston)
Orifice size [mm]	65 mm
Orifice size fraction [in]	2 1/4 in
Packing format	Single pack
Parts Program name	EV220B 65 - 100
Product accessories	Flanges Solenoid valve accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	ca3467a2-054f-4e8c-b2c1-112e44e3f676
SCIP dossier product name	EV220B 65-100
Seal Material	EPDM
Serviceable	Solenoid valve spare parts
Specification key	EV220B 65CI FL10 E NC000
Type designation	EV220B 65
