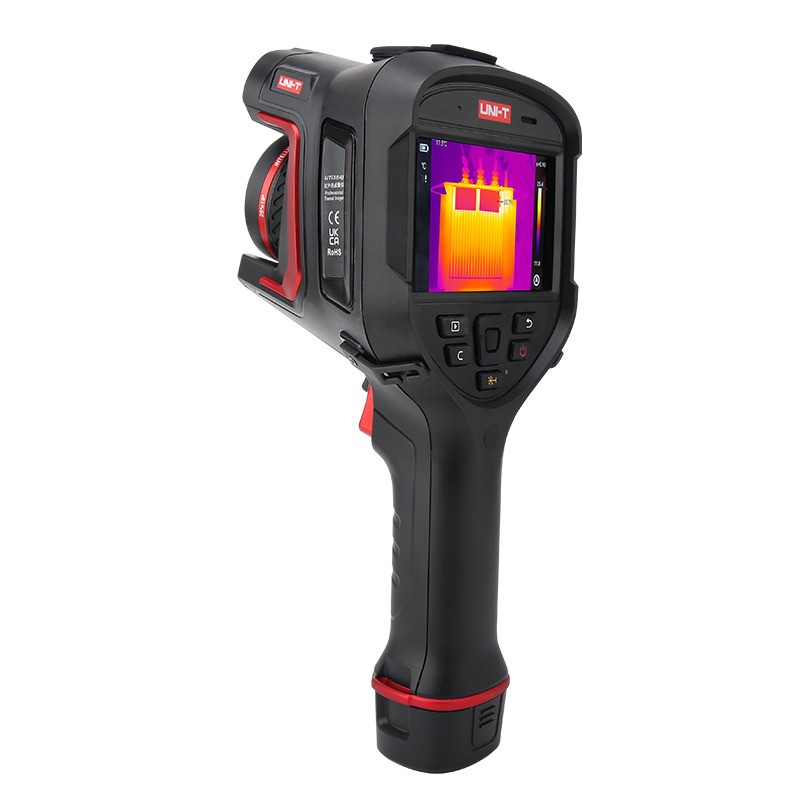

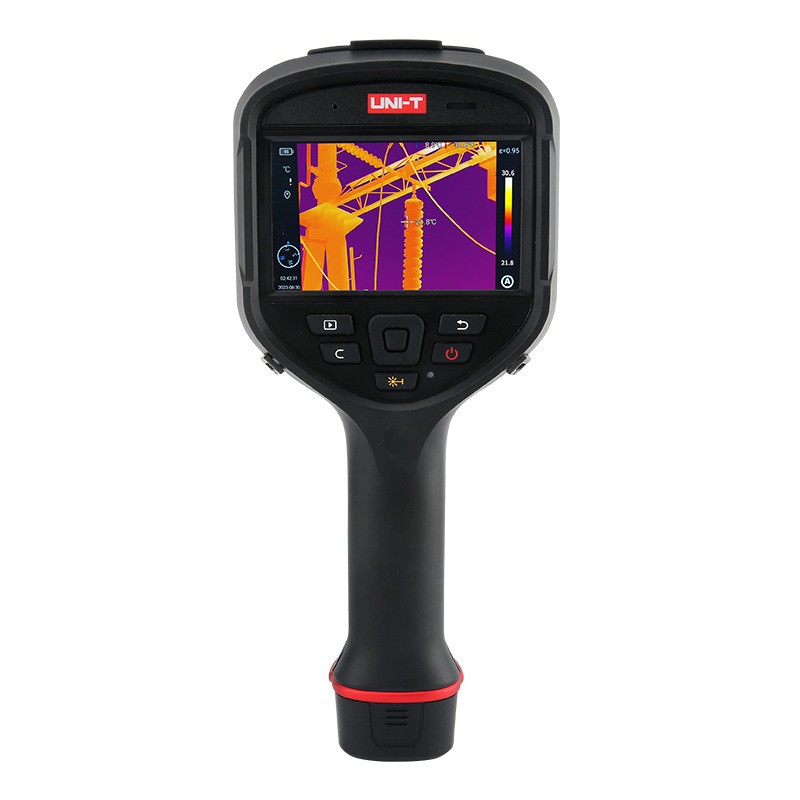

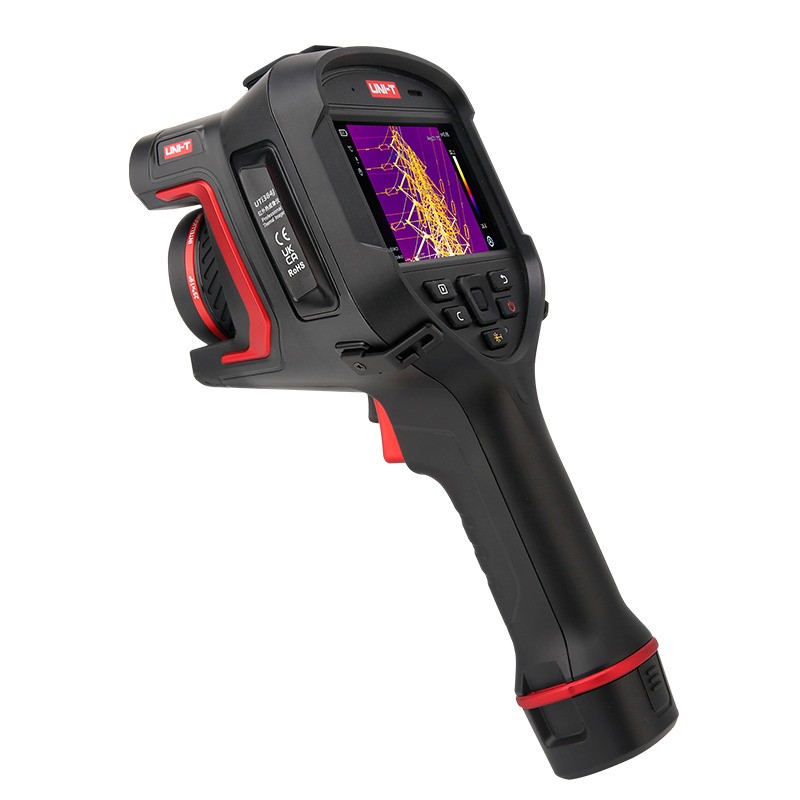

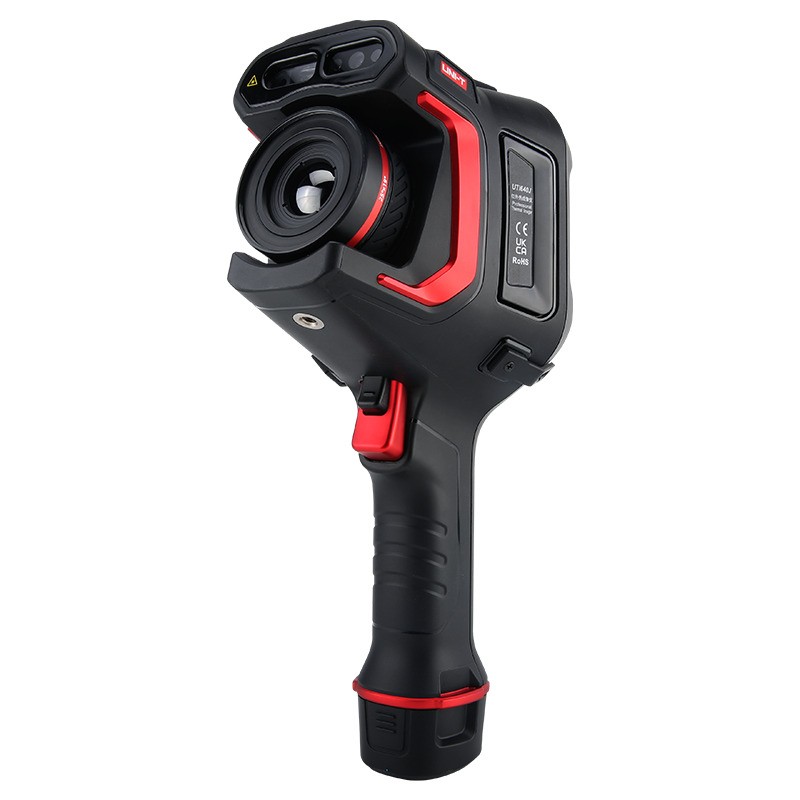

Industrial Enhanced Thermal Camera
With a built-in high-sensitivity infrared detector with 384×288 pixels, a 8MP digital camera, and 5 focusing modes. The high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” design. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets.
Features :
Specifications
Specifications
| Technical Data | |||||
| Display | 4.3” LCD Touch (800×480) | ||||
| IR resolution(Pixels) | 384×288 | ||||
| Super resolution | ✔(768×576) | ||||
| Spectral range | 7.5~14μm | ||||
| Pixel size | 12μm | ||||
| Frame rate | 30Hz | ||||
| Thermal sensitivity(NETD) | ≤40mK | ||||
| Focus | Manual / Automatic / Touch autofocus / Continuous autofocus | ||||
| Lens recognition | Automatic | ||||
| Infrared lens | Standard lens | Wide-angle lens (Optional) | Medium tele lens (Optional) | Tele lens (Optional) | High-temp lens (optional) |
| Lens focal length | 10.5mm | 6.0mm | 17.5mm | 37.5mm | / |
| Field of view(FOV) | 25°×19° | 44°×34° | 15°×11° | 7°×5° | 25°×19° |
| Temperature measurement range |
Support auto-switching: -40°C~150°C, 0°C ~650°C 500°C ~2000°C (Optional Hi-temp. Lens) |
||||
| Accuracy | ±2℃ or ±2% whichever is greater | ||||
| Functions | |||||
| Color palettes | White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized | ||||
| Image modes | Thermal, Visual image, Fusion, PIP | ||||
| On screen analyzer | 10 Points/10 Lines/10 Rectangles/10 Circles | ||||
| Isotherm | Automatic, Semi-automatic, Manual | ||||
| Level & Span | ✔ | ||||
| Image outline | ✔ | ||||
| Panoramic stitching | ✔ | ||||
| Hi/Lo temperature alarm | LCD animation, LED flashlight, Buzzer | ||||
| Hi/Lo temperature tracking | ✔ | ||||
Tags:
UTi384J384×288Professional Enhanced Thermal Camera
