Industrial Enhanced Thermal Camera

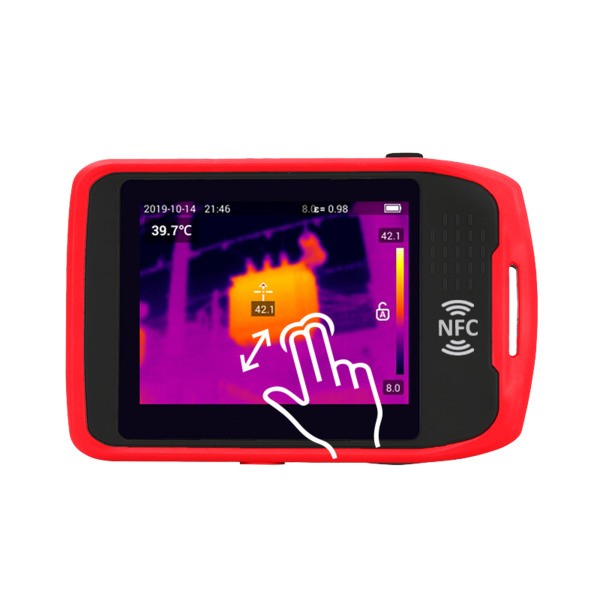

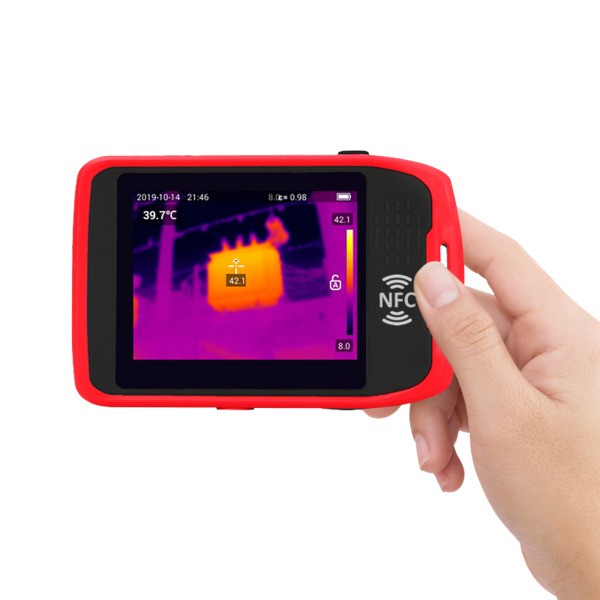

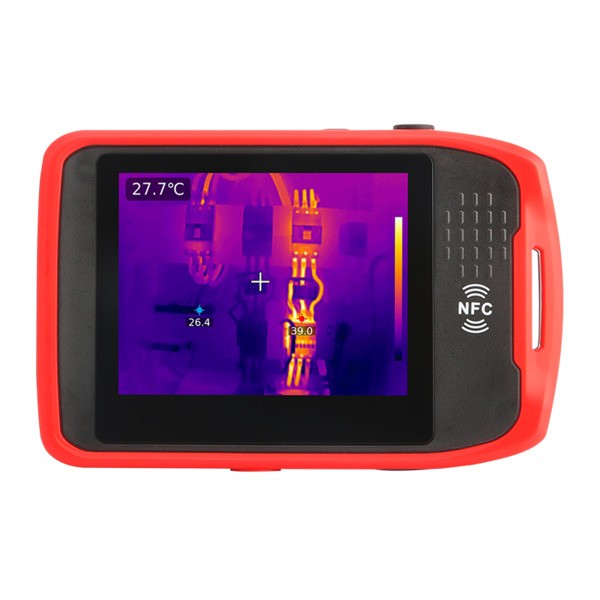

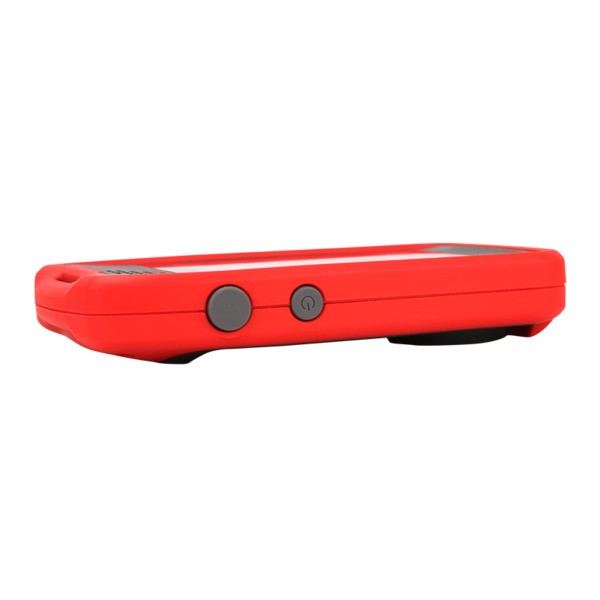

UTi720T Portable Thermal Camera
- Product Item : UTi720T
- Category： UNI-T
- IR resolution (Pixels):256×192
- Display:3.5” TFT Touch (640×480)
- Field of view(FOV): 56°(H) × 42°(V)
- Thermal sensitivity(NETD):≤50mK
UTi720T is with ergonomic design, perfectly fits human palm for fast detect the potential problems in building diagnosis, automotive maintenance, electrical equipments inspection, etc. industry. UTi720T features a 3.5″ touch display screen and high-performance infrared detector with 256×192 pixels to ensure the display effect of infrared thermal imaging. Thanks to the rich functions such as Smart meter, Wi-Fi live stream, etc., helps users improve the working effect to deal with the complex and severe scenarios.
Features :
- 256×192 pixels / 12μm infrared detector
- Temp. measurement range from -20℃ to 550℃
- 3.5″ Touch display screen
- 2MP digital camera
- Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
- Smart meter
- Wi-Fi connection via NFC
- PC & APP analysis software, Wi-Fi live stream & reverse control are supported on APP
- Multi-languages OS
- LED light
- IP54 and wistand the drop of 1m height
Specifications
| Technical Data | |
| Display | 3.5” TFT Touch (640×480) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤50mK |
| Focus | Focus Free |
| Field of view(FOV) | 56°(H) × 42°(V) |
| Spatial resolution(IFOV) | 3.75mrad |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Visual image, Fusion (T-Mix), PIP |
| On screen analyzer | 5 Points/1 Line/ 3 Rectangles/ 3 Circles |
| Isotherm | Auto/Manual/Above/Below/Section/Ratio |
| Hi/Lo temperature alarm | LCD animation & LED flashlight |
| Hi/Lo temperature tracking | √ |
| Digital camera resolution | 2MP |
| Digital zoom | 1.0~8× continuous |
| Video recording | √ |
| Wi-Fi / Wi-Fi live streaming | √ |
| Bluetooth | √ |
| LED lighting | √ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 1800mAh rechargeable Li-ion battery |
| Operating time | ≥2.2 hours (with Wi-Fi off) |

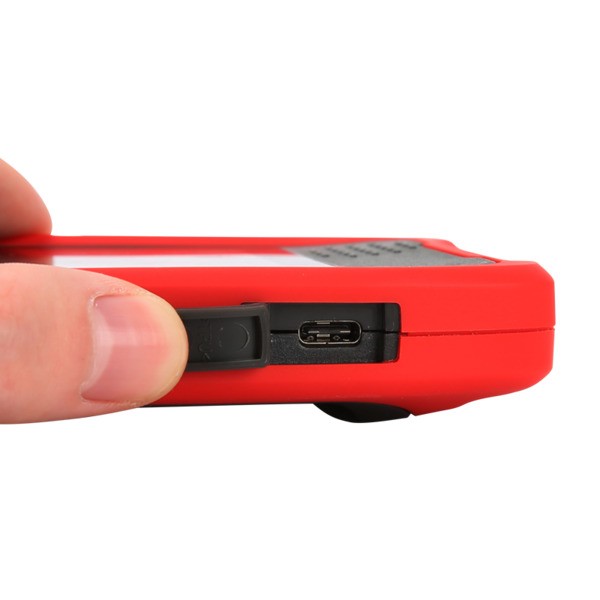

| USB | Type-C |
| Storage | 12GB Internal |
| Image storage format | JPG |
