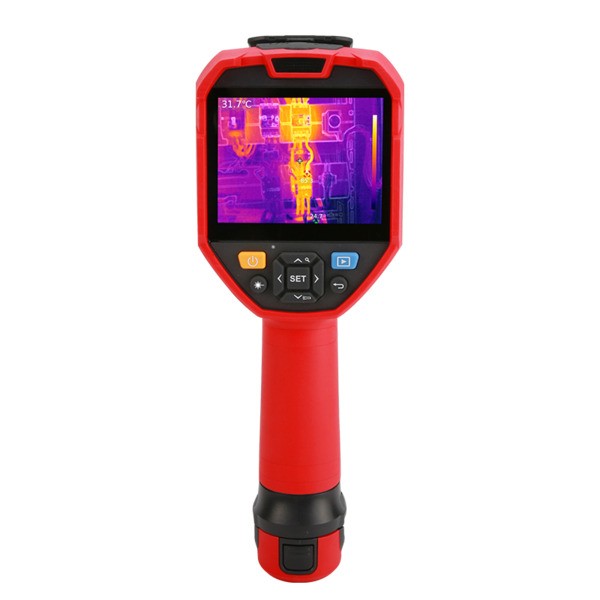

UTi730V Professional Enhanced Thermal Camera

  • Product Item : UTi730V
  • Category： UNI-T
  • IR resolution (Pixels):320×240
  • Display:3.5″ IPS Touch (640×480)
  • Field of view(FOV):56°(H) × 42°(V)
  • Thermal sensitivity(NETD):≤65mK
  • INQUIRY   EMAIL

Industrial Enhanced Thermal Camera

V series features a 5MP digital camera and 3.5′ touch display screen to improve the working efficiency and imaging quality. Build-in laser ranging function meets the need of measuring targets in a safety distance. In functions, video & voice recording and Wi-Fi live streaming are added to make the device more playable. It is a reliable measurement tools widely used in industrial field.

It can be equipped with macro lens UT-Z003 (Optional), the recommended distance is 4 cm.

Features :

  • 3.5″ IPS touch display screen (640×480 Pixels)
  • IR resolution: 320×240
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
  • Auto alarm for HI/LO temperature
  • Auto tracking for HI/LO spot
  • On-screen analyzer: 5 Points/1 Line/3 Rectangles/3 Circles
  • Isotherm
  • With a 5MP digital camera
  • 2x, 4x magnification
  • 4 image modes (Thermal, Visual image, Fusion (T-Mix), PIP)
  • QR Code – photo management
  • Video & voice recording
  • Laser pointer & laser ranging
  • LED flashlight
  • Wi-Fi connection through the Mobile App – Wi-Fi live streaming is supported
  • PC software: analysis and real-time image projection
  • 5200mAh detachable battery pack (UT-M17)
  • IP54
  • 2m drop-proof

Specifications

Technical Data
Display 3.5″ IPS Touch (640×480)
IR resolution(Pixels) 320×240
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤25Hz
Thermal sensitivity(NETD) ≤65mK
Focus Focus Free
Field of view(FOV) 56°(H) × 42°(V)
Temperature measurement range   -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Functions
Color palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes Thermal, Visual image, Fusion (T-Mix), PIP
On-screen analyzer 5 Points/1 Line/3 Rectangles/3 Circles
Isotherm Auto/Manual
Hi/Lo temperature alarm LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking ✔
Digital camera resolution 5MP
Digital zoom 2x, 4x
Video recording ✔
Voice recording ✔
Wi-Fi ✔
Wi-Fi live streaming ✔
LED lighting ✔
Laser pointer ✔
Laser distance measurement ✔
Analysis software PC+APP
General Characteristics
Battery 5200mAh detachable Li-ion battery pack (UT-M17)
Operating time Tags:
