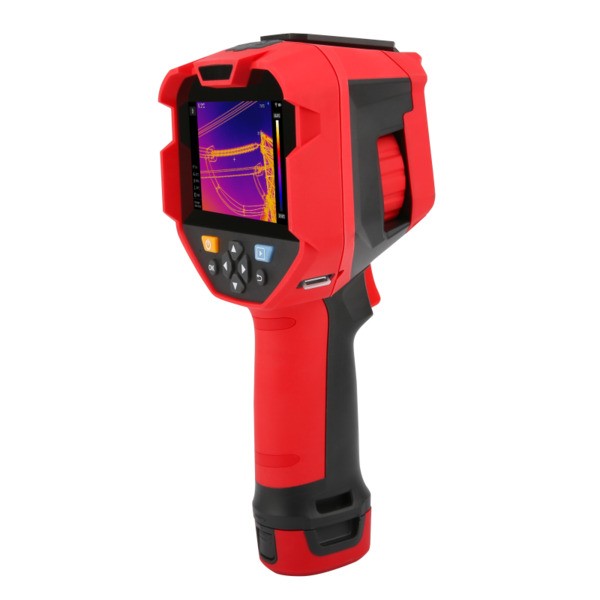

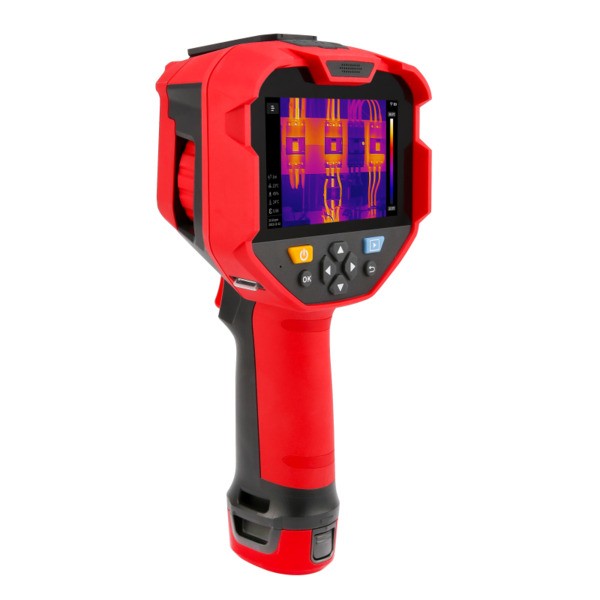

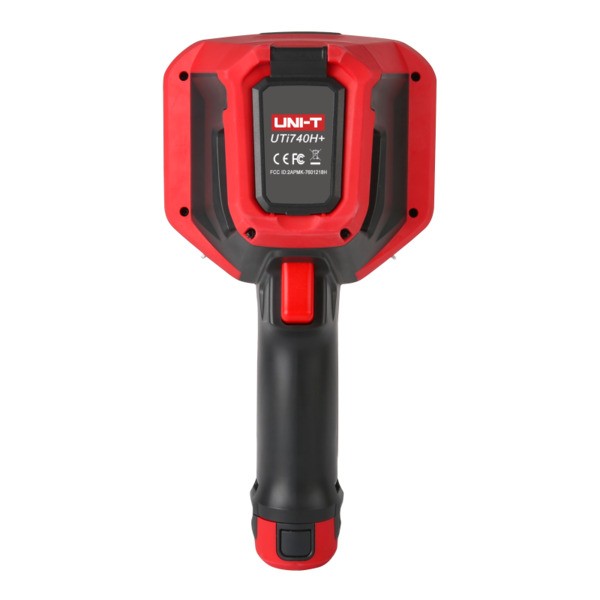

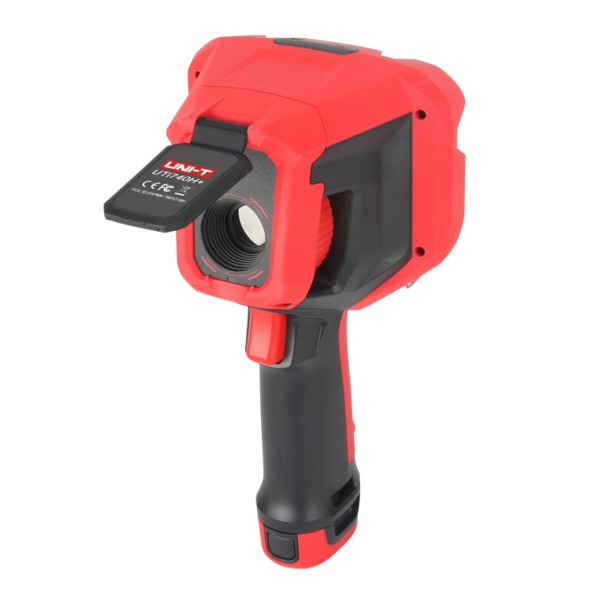

UTi740H+ Professional Enhanced Thermal Imager

UTi740H+ Professional Enhanced Thermal Imager

Product Item : UTi740H+
Category： UNI-T
IR resolution (Pixels):400×300
Display:4.3″ LCD Touch (800×480)
Field of view(FOV): 29°(H) × 21.5°(V)
Thermal sensitivity(NETD):＜35mK
INQUIRY EMAIL

Industrial Enhanced Thermal Camera

The UTi740H+ is equipped with a high-sensitivity infrared detector (＜35mK) boasting 400×300 infrared resolution, paired with a 4.3-inch capacitive touchscreen (800×480 pixels) that delivers vivid, detail-rich imaging. Its manual focus ring enables seamless measurement of both near and distant targets. Measurement data can be saved as photos or videos, while Wi-Fi/wired connectivity to APP/PC software facilitates comprehensive data management and analysis—helping you get work done more efficiently.

Features :

● 400×300 High-definition infrared resolution (upscales to 800×600 pixels when super resolution is on)
● 4.3″ Capacitive touch display (800×400)
● Manual focus
● 30Hz frame rate
● Temperature measurement range from -20℃ to 650℃
● High-accuracy measurement (up to ±1.5℃/±1.5% whicherver is greater)
● T-Mix image fusion algorithm
● 5MP digital camera
● Radiometric video record
● WiFi live streaming
● Multilingual operating system

Specifications

Technical Data
Display	4.3″ LCD Touch (800×480)
Detector type	UFPA (Vanadium oxide)
IR resolution(Pixels)	400×300
Super resolution(Pixels)	800×600
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤30Hz
Thermal sensitivity(NETD)	＜35mK
Focus	Manual Focus
Lens focal length	9.5mm
Field of view(FOV)	29°(H) × 21.5°(V)
Spatial resolution(IFOV)	1.26mrad
Temperature measurement range	-20℃ ~ 650℃
Accuracy	0℃~650℃, ±1.5℃ or ±1.5% whichever is greater -10℃~0℃, ±2℃ or ±2% whichever is greater
Functions
Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes	Thermal, Visual image, T-Mix fusion, PIP
On screen analyzer	16 Points/16 Lines/16 Rectangles/16 Circles
Isotherm	Auto/Manual/Above/Below/Section
HI/LO temperature alarm	LCD animation & Buzzer
HI/LO temperature tracking	✔
Annotation	Text & Voice
Digital camera resolution	5MP
Digital zoom	1x~6x
Video recording	✔
Voice recording	✔
Wi-Fi / Wi-Fi live streaming	✔
Analysis software	PC+APP
General Characteristics
Battery	5200mAh detachable Li-ion battery pack (UT-M17)
Operating time	Approx. 4 hours (with Wi-Fi off)
USB	Type-C
