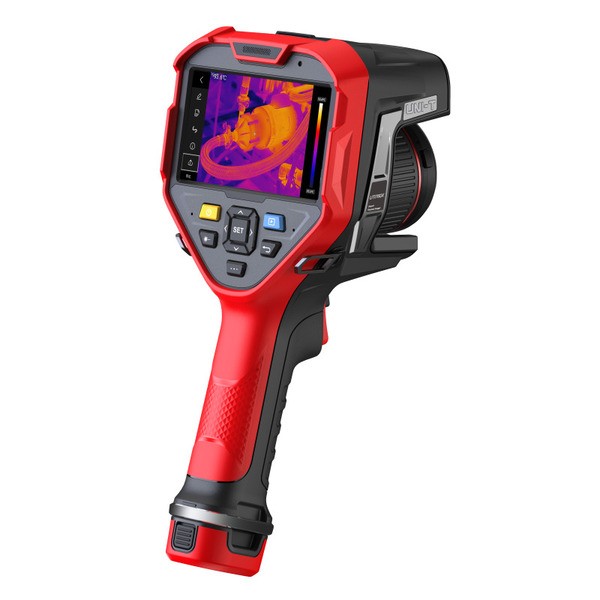

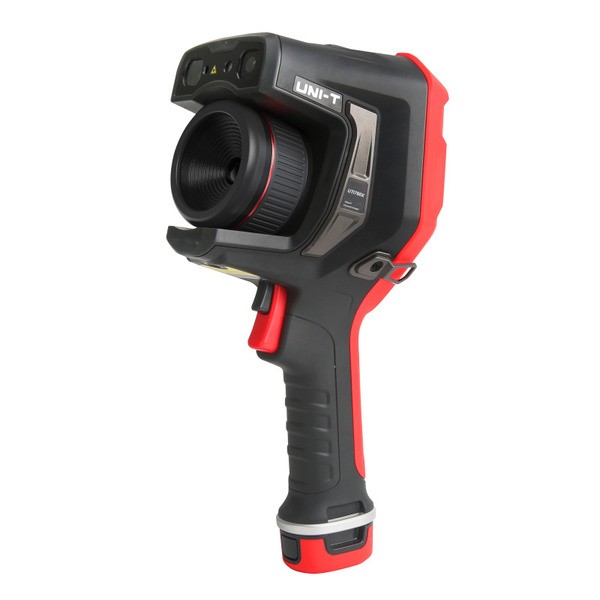

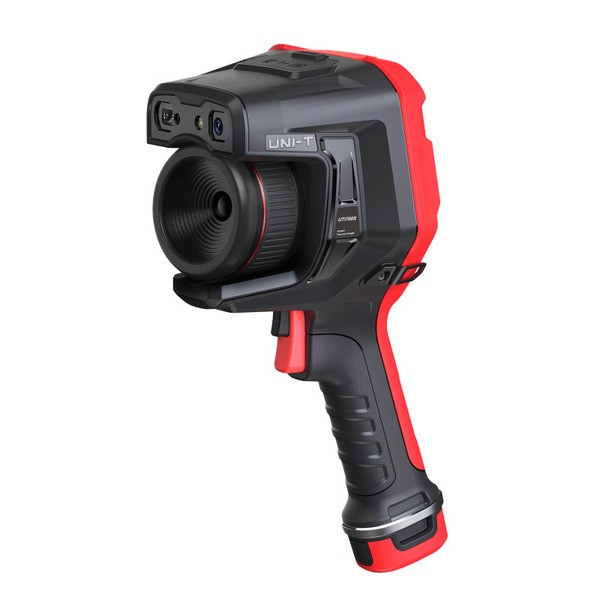

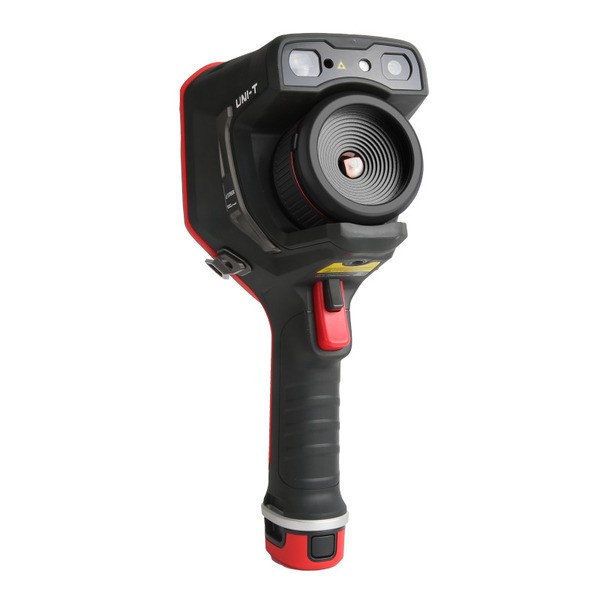

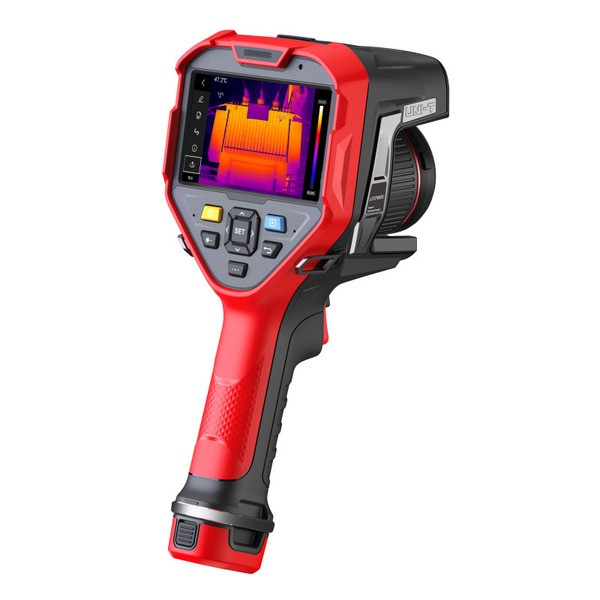

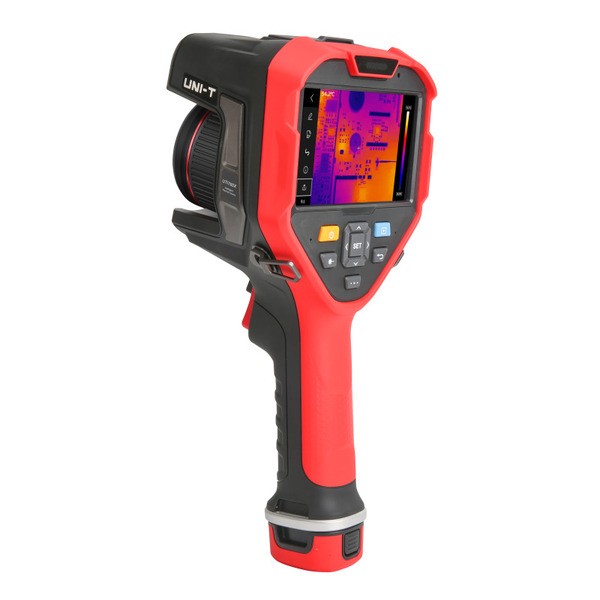

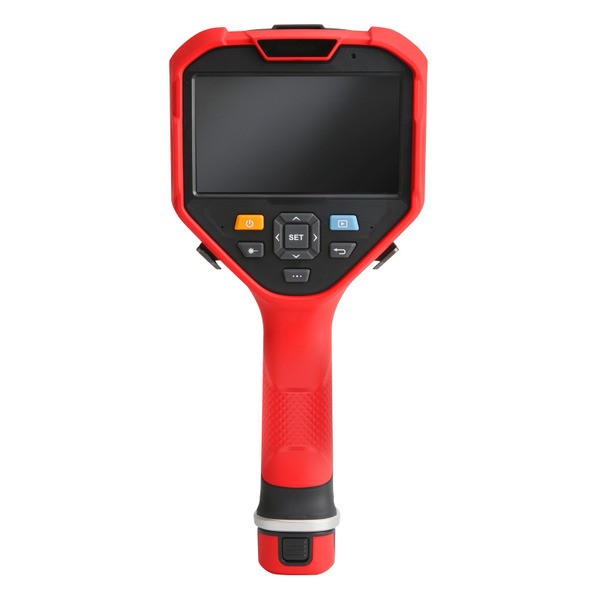

Industrial Enhanced Thermal Camera
UTi740X features a high-resolution infrared detector of 384×288 pixels and a 13MP digital camera. The high-precision thermal camera is designed specifically for the industrial field—30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range, combined with the optional camera lens, meets the requirements of numerous severe measurement scenarios.
Features :
● 400×300 pixels (upgrade to 800×600 when Super Resolution is on)
Specifications
Name: Sophie Wang Mobile：+86 18681453433 Tel：+86 18681453433 Whatsapp：8613244706006 Email：sophie@meterbook.com Add：Jingying Plot,Baoan District,Shenzhen City,Guangdong Province,China We chat
● Temp. measurement range from -20℃ to 1200℃ (up to 2200℃ when High temperature lens is installed)
● Interchangeable camera lens (support lens autocal)
● Multiple focus modes (Continuous AF/Contrast AF/Laser AF/Touch AF/Manual Focus/Automatic)
● With the T-Mix image fusion algorithm technology
● High-precision measurement (accuracy is up to ±1.0℃ or ±1.0%)
● Smart meter
● AI voice
● Laser rangefinder
● OTA upgrade
Model No.
UTi740X
Technical Data
Display
5′ IPS Touch (1280×720)
IR resolution(Pixels)
400×300
Super resolution(Pixels)
800×600
Spectral range
7.5～14μm
Pixel size
12μm
Frame rate
30Hz
Thermal sensitivity(NETD)
35mK
Focus mode
Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus
Focusing time
<2s
Lens recognition
✔
Lens calibration
Automatic
Lens model
UT-Z048
UT-Z049
UT-Z050
UT-Z051
UT-Z052
UT-Z053
Lens
Standard
Wide-Angle
Telephoto
Ultra Telephoto
High Temperature
Macro
Lens focal length
9.6mm
6mm
18mm
36mm
18mm
18mm
Aperture
F1.0
F1.0
F1.0
F1.0
F1.0
F1.1
Field of view(FOV)
27.7°(H)×20.6°(V)
46°(H)×34°(V)
14.6°(H)×10.9°(V)
7.2°(H)×5.5°(V)
14.6°(H)×10.9°(V)
—
Spatial resolution(IFOV)
1.28mrad
2.1mrad
0.66mrad
0.33mrad
0.66mrad
50μm
Tags:
UTi740XProfessional Enhanced Thermal Imager400×300
RELATED PRODUCTS
CATEGORIES
CONTACT US
UTi740X Expert Thermal Imager
- Product Item : UTi740X
- Category： UNI-T
- IR resolution (Pixels):400×300
- Display:5′ IPS Touch (1280×720)
- Pixel size:12μm
- Thermal sensitivity(NETD):35mK
