Overview

The specialists for hazardous locations

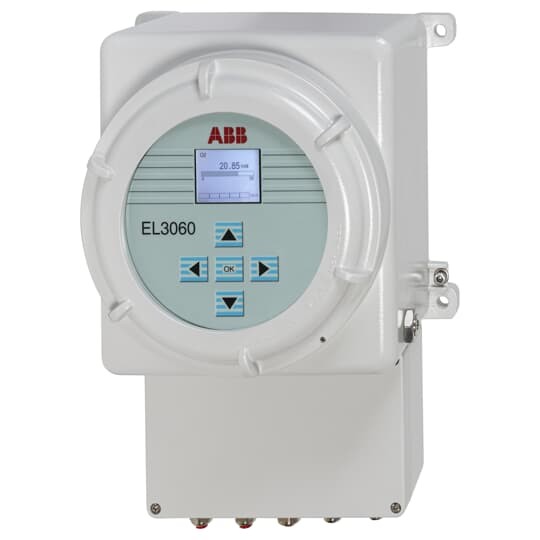

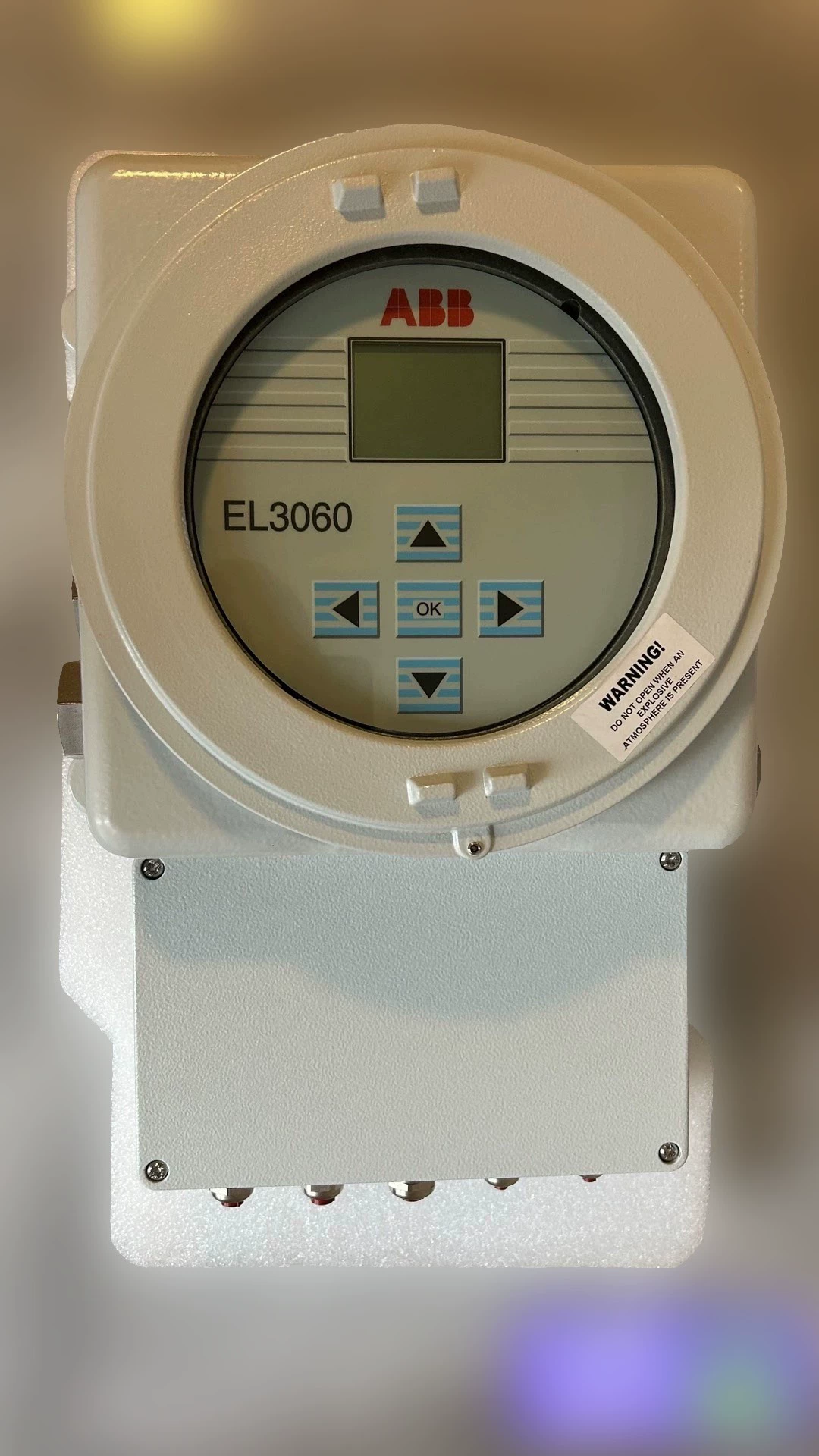

The EL3060 series is compactly built and especially designed for hazardous areas. The gas analyzer is made up of the flameproof enclosed control unit which can also contain one analyzer. The infrared photometer is built into a separate flameproof enclosure and can be separately installed from the control unit. Their robust and flameproof design meets the requirements for use in hazardous areas, Zone 1, Category 2G in accordance with European ATEX legislation or IECEx standards. Their display with touch screen renders safe operation without opening the housing.

Well-proven measurement technology

The analyzers for the EL3060 have been taken from the modular product line Advance Optima where they have been successfully used in process analytics for many years.

Infrared photometer Uras26
Paramagnetic oxygen analyzers Magnos206, Magnos28
Thermal conductivity analyzers Caldos27, Caldos25

Easy to Combine

An oxygen as well as the thermal conductivity analyzer can be combined with the Infrared Photometer. This means that complex measuring tasks like internal cross sensivity corrections with up to 5 measuring components in one device can be fulfilled.

Advantages EL3060

Well-proven measurement technology
Compactly built, easy to combine
Intuitiv menu, safe touch screen operation
Easy to install

Proved standard interfaces, Modbus, PROFIBUS

EL3060-CU	EL3060-Uras26
Central Unit housing for controller, display/keypad, power supply and one analyzer module Magnos28 or Caldos25/27.	Separate housing for Uras26 IR photometer.

EL3060 - General Data


Size EL3060-CU	Size EL3060-Uras26
320mm W x 200mm D x 66mm H	240mm Ø x 456mm H

Housing protection	Housing protection
IP 65 purgeable	IP 54/65 purgeable

Power supply	Power supply
100…240 VAC	100…240 VAC

Analyzer Module

Type	Name	Sample Gas (Examples)	Typical range

Photometers

Infrared Photometer	Uras26	CO CO2 SO2 NO	0...10 ppm 0...5 ppm 0...25 ppm 0...75 ppm
		Other approved components and measuring ranges described in the data sheet. 2 measuring ranges per measuring component which can be freely selected 4 measuring components.


Oxygen Analyzer

Paramagnetic with microwing technology	Magnos28	O2	0...0,5 Vol%
		2 measuring ranges per measuring component which can be freely selected.

		2 measuring ranges per measuring component which can be freely selected. Suppressed measuring ranges e.g. 19…21 Vol% O2, Suppressed range max. 1:10


Thermal Conductivity

Silicon sensor	Caldos25	H2 in N2or in Air, SO2 in N2or in Air	0...10 ppm 0...5 ppm
		1 measuring range per measuring component. 3 measuring components.


	Caldos27	H2 in Air, H2in N2 He in Air CH4in H2	0...1 Vol% 0...1 Vol% 0...2 Vol% 0...3 Vol%
		For other components and measuring ranges please refer to the Data sheet. 2 measuring ranges per measuring component 4 measuring components.
