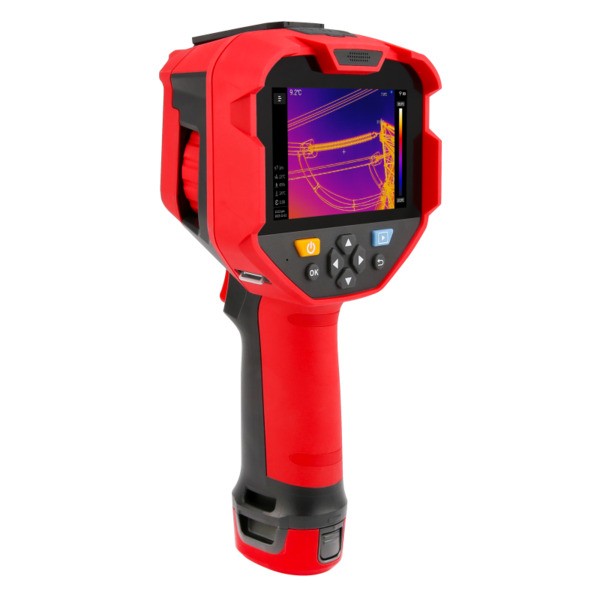

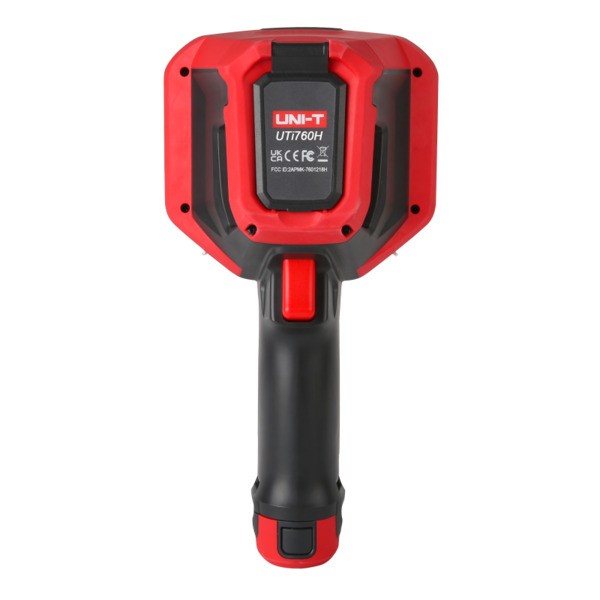

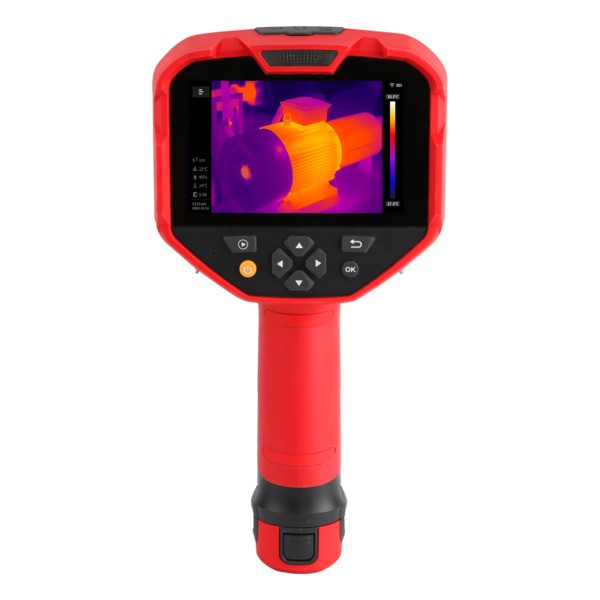

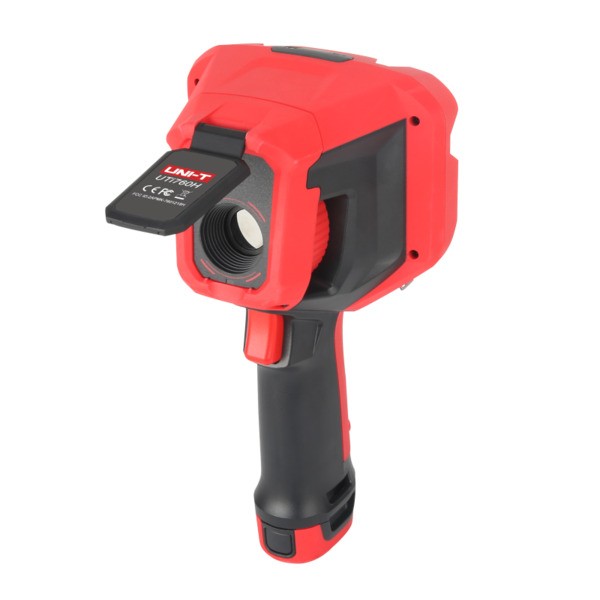

Industrial Enhanced Thermal Camera
The UTi760H is equipped with a high-sensitivity infrared detector (＜35mK) boasting 640×480 infrared resolution, paired with a 4.3-inch capacitive touchscreen (800×480 pixels) that delivers vivid, detail-rich imaging. Its manual focus ring enables seamless measurement of both near and distant targets. Measurement data can be saved as photos or videos, while Wi-Fi/wired connectivity to APP/PC software facilitates comprehensive data management and analysis—helping you get work done more efficiently.
Features :
● 640×480 High-definition infrared resolution (upscales to 1280×960 pixels when super resolution is on)
● 4.3″ Capacitive touch display (800×400)
● Manual focus
● 30Hz frame rate
● Temperature measurement range from -20℃ to 650℃
● High-accuracy measurement (up to ±1.5℃/±1.5% whicherver is greater)
● T-Mix image fusion algorithm
● 5MP digital camera
● Radiometric video record
● WiFi live streaming
● Multilingual operating system
Specifications
| Technical Data | |
| Display | 4.3″ LCD Touch (800×480) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 640×480 |
| Super resolution(Pixels) | 1280×960 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤30Hz |
| Thermal sensitivity(NETD) | ＜35mK |
| Focus | Manual Focus |
| Lens focal length | 18mm |
| Field of view(FOV) | 24°(H) × 19.3°(V) |
| Spatial resolution(IFOV) | 0.67mrad |
| Temperature measurement range | -20℃ ~ 650℃ |
| Accuracy |
0℃~650℃, ±1.5℃ or ±1.5% whichever is greater -10℃~0℃, ±2℃ or ±2% whichever is greater |
| Functions | |
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Image modes | Thermal, Visual image, T-Mix fusion, PIP |
| On screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles |
| Isotherm | Auto/Manual/Above/Below/Section |
| HI/LO temperature alarm | LCD animation & Buzzer |
| HI/LO temperature tracking | ✔ |
| Annotation | Text & Voice |
| Digital camera resolution | 5MP |
| Digital zoom | 1x~6x |
| Video recording | ✔ |
| Voice recording | ✔ |
| Wi-Fi / Wi-Fi live streaming | ✔ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 5200mAh detachable Li-ion battery pack (UT-M17) |
| Operating time | Tags:
