Pocket-sized Thermal Camera
UTi120T Pocket-sized Thermal Camera
- Product Item : UTi120T
- Category： UNI-T
- IR resolution (Pixels):120×90
- Display:3.5” TFT Touch (320×240)
- Field of view(FOV):50°×38°
- Thermal sensitivity(NETD):≤60mK

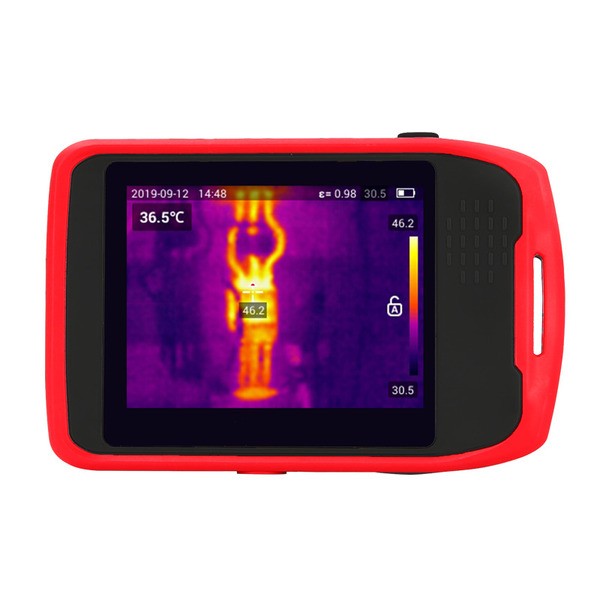

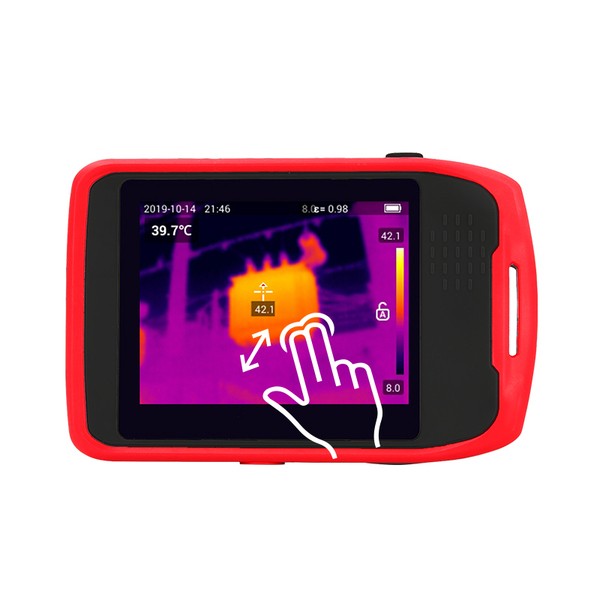

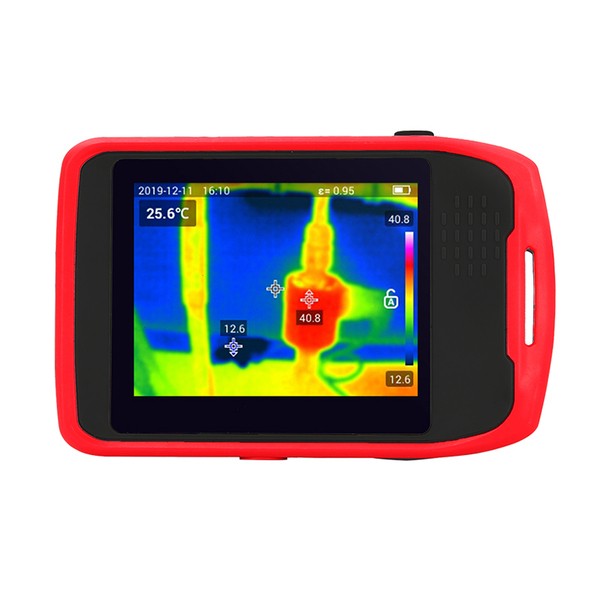

UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20℃~400℃. It also supports Wi-Fi connection through UNI-T Mobile App. With UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.
Features :
- Compact and portable
- 5” TFT touch screen (320×240 Pixels)
- IR resolution: 120×90
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
- On screen analyzer: 1 Point /1 Rectangle
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Image modes: Thermal, Fusion, Visual Image,PIP
- Digital camera resolution: 640×480
- Digital zoom: 1.0~8x (Continuous Zoom)
- Color palettes: 6(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
- LED flashlight
- PC Software analysis)
- Wi-Fi connection through Mobile APP
- USB rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP54
- 1m drop proof
Product Specification of UTi120T
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Display | 3.5” TFT Touch (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 7.6mrad |
| Frame rate | ≤25Hz |
| Spectral range | 7.5~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes |
6 (White hot, Black hot, Ironbow, Hot iron, Arctic,Medical) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 1 Point/1 Rectangle |
| Digital camera resolution | 640×480 |
| Digital zoom | 1.0~8× continuous |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| PC software analysis | √ |
| Wi-Fi | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 5000mAh) |
| Battery operation time | ≥2 hours (with Wi-Fi off) |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 1m |
| Storage | 4GB Internal |
| Image/Video storage format | JPEG |
| Certificates | CE,FCC,RoHS |
| Product net weight | 212g |
