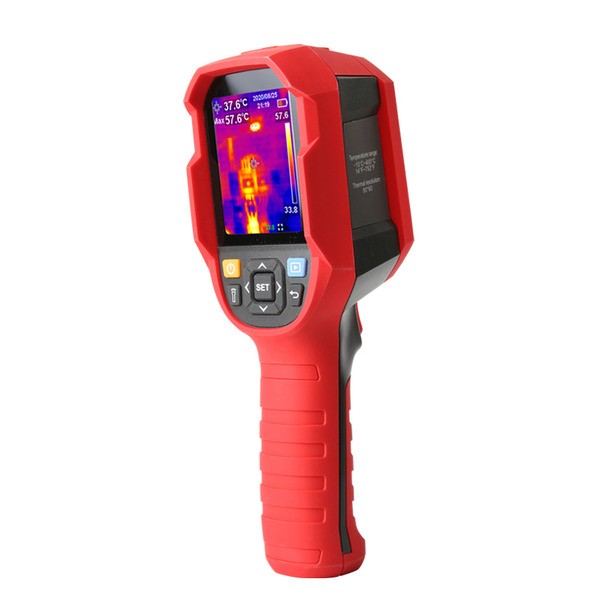

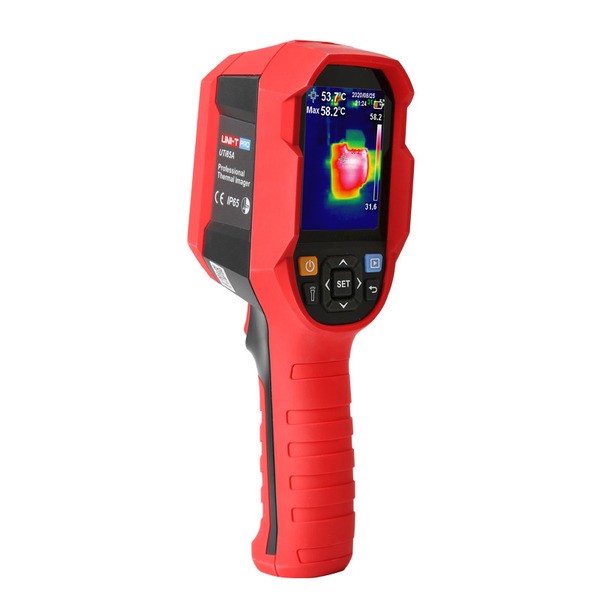

UTi85A Heavy Duty Thermal Camera

Product Item : UTi85A
Category： UNI-T
IR resolution (Pixels):80×60
Display:2.8” TFT LCD (320×240)
Field of view(FOV):51°×38°
Thermal sensitivity(NETD):≤150mK
INQUIRY EMAIL

Heavy Duty Thermal Camera

UTi85A is a rugged and ergonomically designed thermal camera. It is powerful, user friendly, and with great performance. UTi85A can automatically track the objective’s temperature from -10℃~400℃. It is an economical professional troubleshooting tool, widely used in many applications.

Features :

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 80×60
Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
Image capture
Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)

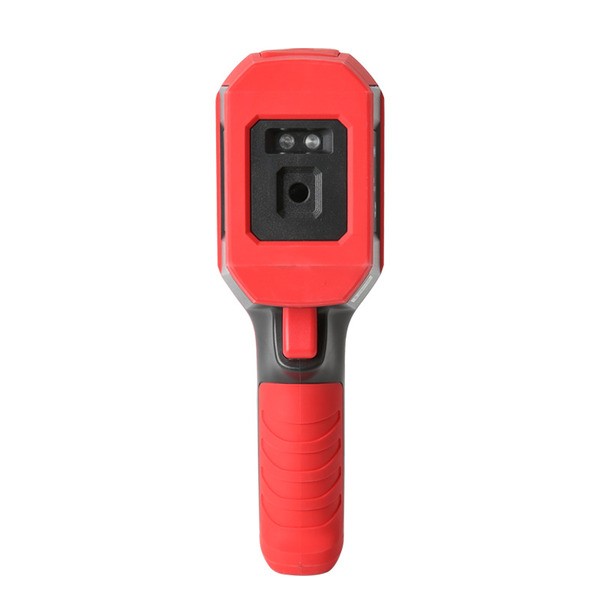

LED flashlight
PC software analysis
Rechargeable Li-ion battery

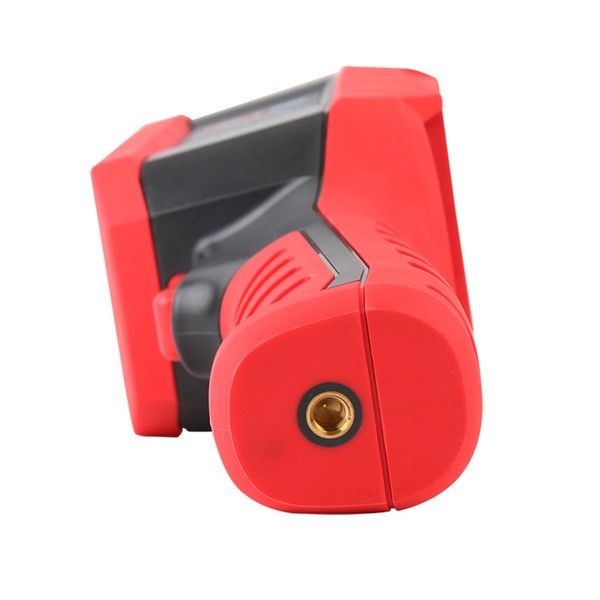

1/4” tripod mounting hole
IP65
2m drop proof

Product Specifications of UTi85A

Technical Data
IR resolution (Pixels)	80×60
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	51°×38°
Thermal sensitivity(NETD)	≤150mK
Spatial resolution(IFOV)	11.1mrad
Frame rate	≤9Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-10℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)
Image modes	Thermal
Hi/Lo temperature alarm	Icon,LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m

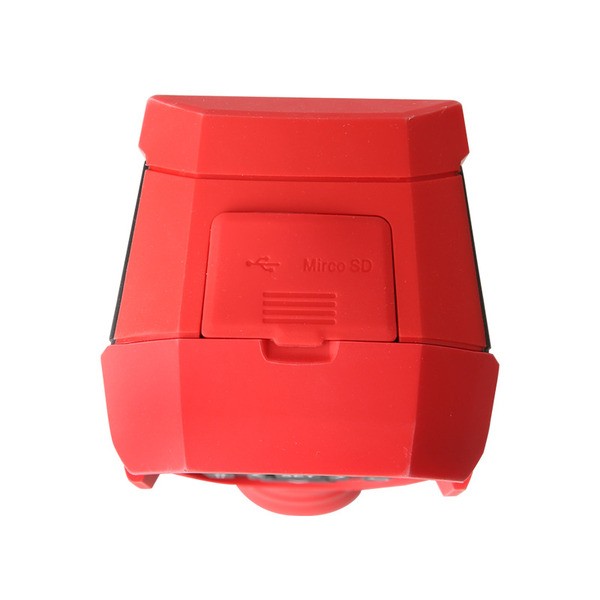

Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, Adapter, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton	10
Standard carton size
