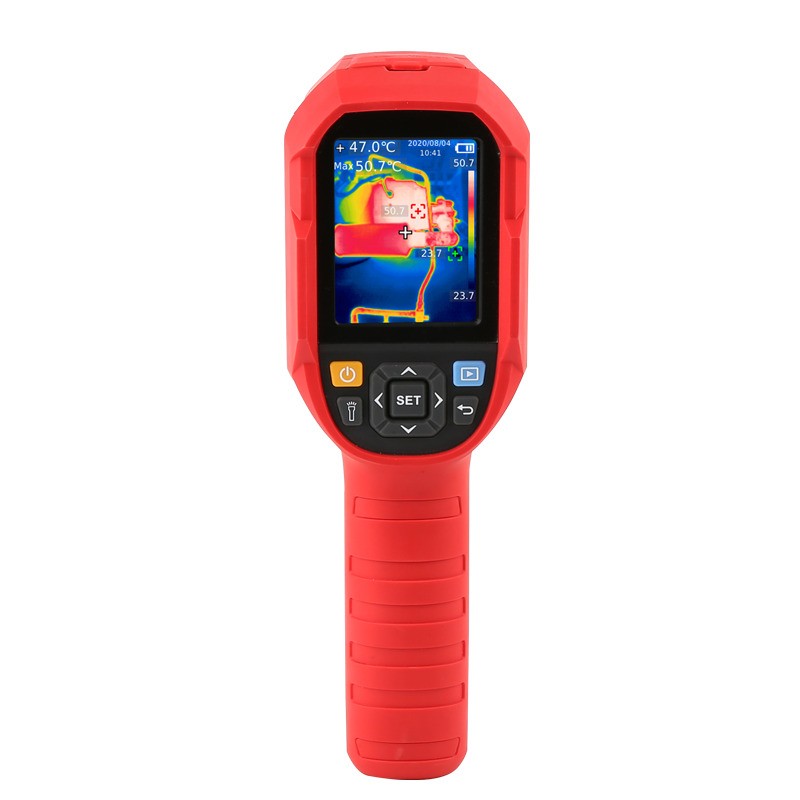

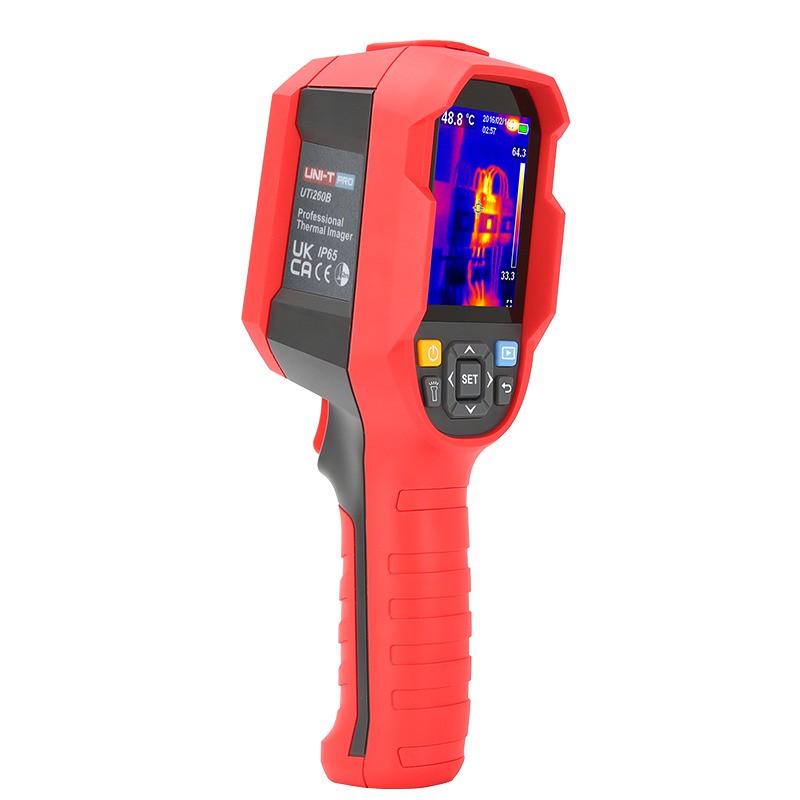

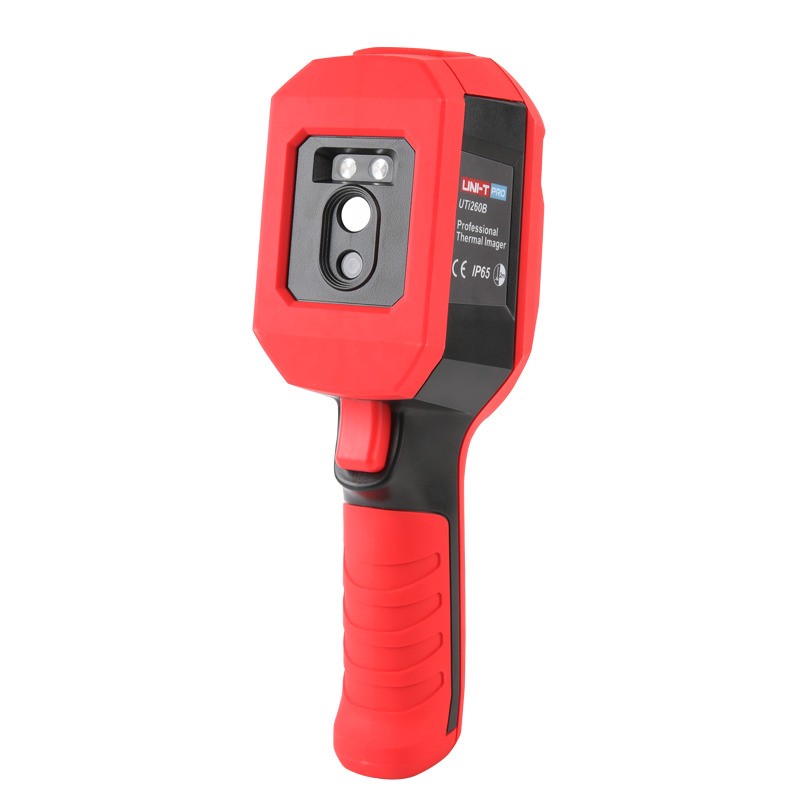

UTi260B Heavy Duty Thermal Camera

Product Item : UTi260B
Category： UNI-T
IR resolution (Pixels):256×192
Display:2.8” TFT LCD (320×240)
Field of view(FOV):56°×42°
Thermal sensitivity(NETD):≤60mK
INQUIRY EMAIL

Heavy Duty Thermal Camera

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Features :

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal,Visual image,Fusion,PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery

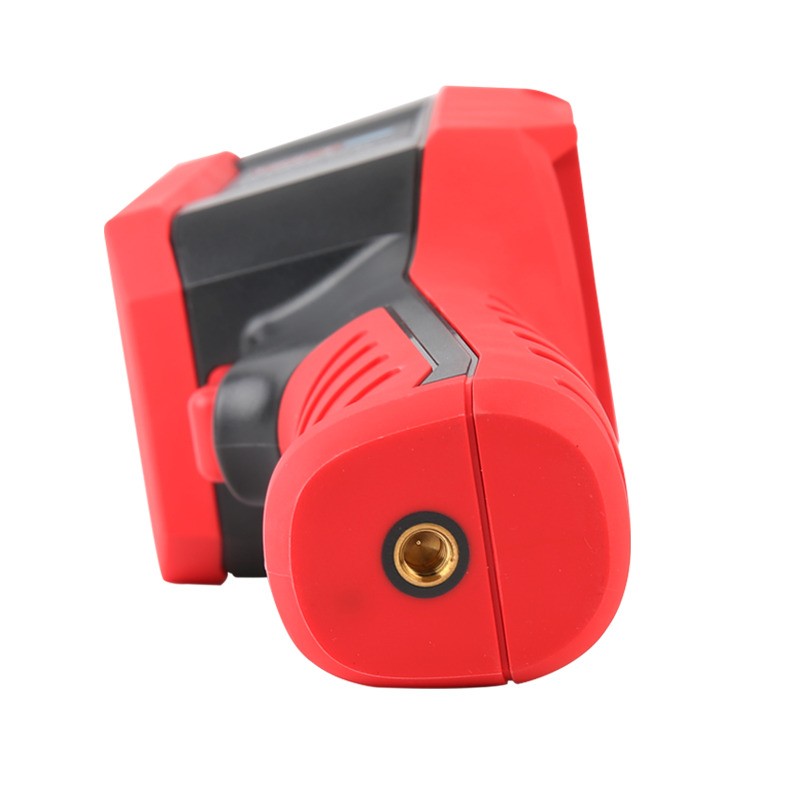

1/4”Tripod Mounting Hole
IP65
2m drop proof

Product Specification of UTi260B

Technical Data
IR resolution (Pixels)	256×192
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	56°×42°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	3 Points
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon,LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
