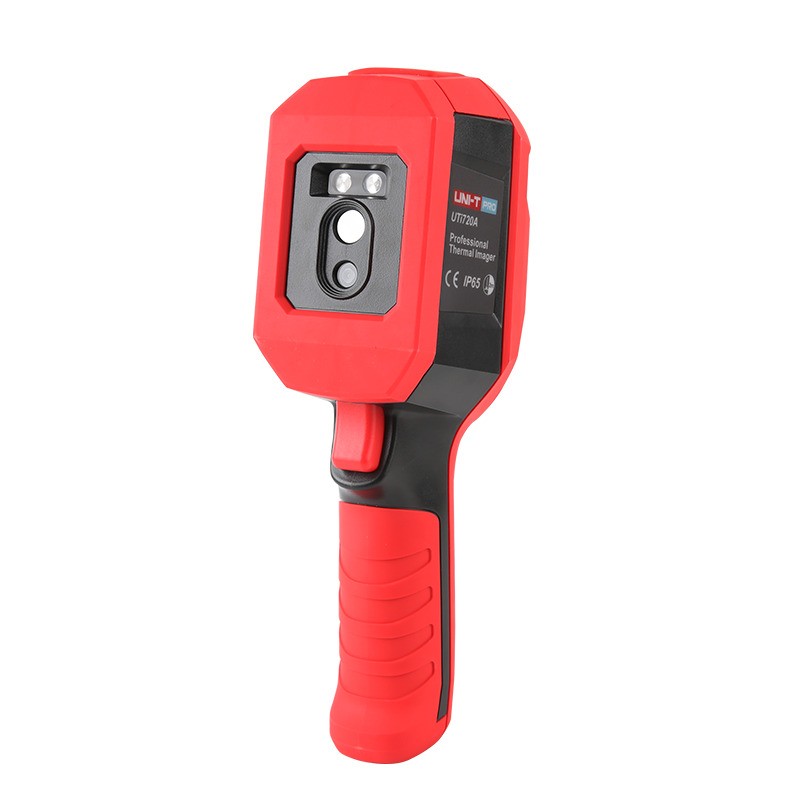

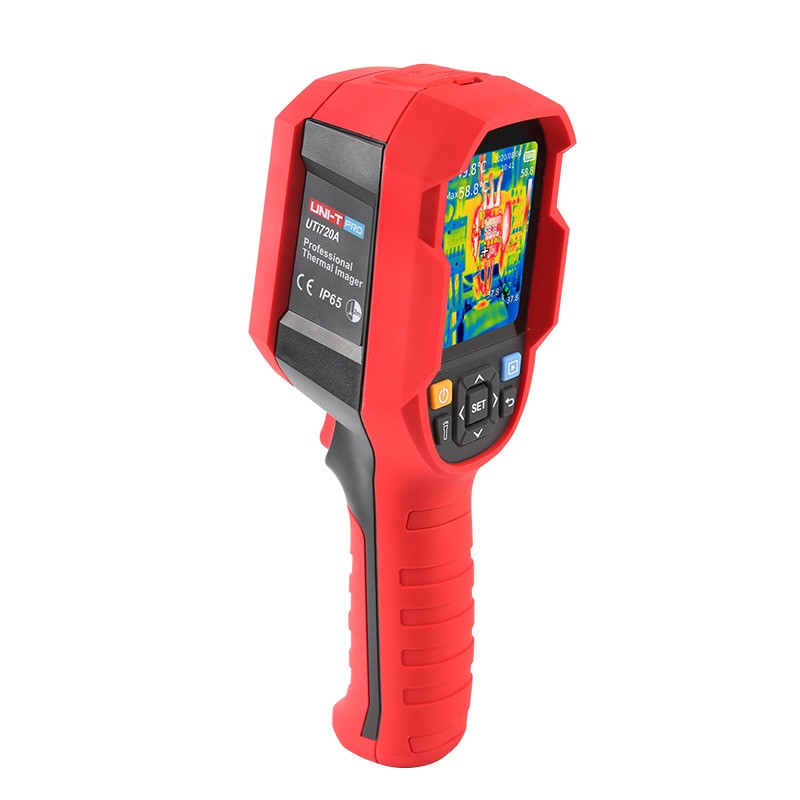

Heavy Duty Thermal Camera
UTi720A is a featured thermal imager with a quality build. Cooperate with 2.8″
large display screen, UTi720A’s high-definition IR resolution assists users to
notice thermal abnormalities easily. Furthermore, it is also equipped with high
brightness LED light. This rugged product has IP65 certificate and withstand 2 meter drop
Features :
- Durable and user-friendly
- 2.8” TFT display screen (320×240 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: 3 Points
- Image capture
- Image modess: Thermal
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- LED flashlight
- PC software analysis and real-time image projection)
- Rechargeable Li-ion battery
- 1/4”Tripod Mounting Hole
- IP65
- 2m drop proof
Product Specification of UTi720A
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42.2° |
| Thermal sensitivity(NETD) | ≤50mK |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~400℃ (-4℉~752℉) |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes |
7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes | Thermal |
| On screen analyzer | 3 Points |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| PC software analysis | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 7 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,FCC,RoHS |
| Product net weight | 490g |
| Product size | 236mm×75.5mm×86mm |
