Hydrostatic Level measurement

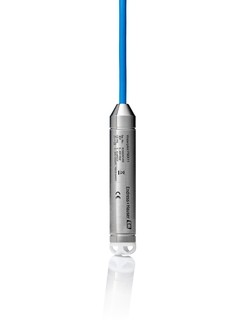

Waterpilot FMX11

Simple and reliable level probe for freshwater applications

Field of application

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement.

It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

Benefits

• Simple and reliable transmitter for various drinking water applications
• Easy installation, commissioning and operation
• Orderable with flexible measuring ranges and cable lengths tailored to fit your application
• Robust construction for durable long-term services
• Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations
• Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.
• Simple specification and ordering

Measuring / Application task

• Measuring principle

  Hydrostatic pressure

• Characteristic

  Compact probe with metallic cell for hydrostatic level measurement
  in fresh water, ground water and potable water storage.

• Supply voltage

  8...28 VDC

• Reference Accuracy

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• Long term stability

  0.1 % of URL/year

• Process temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Ambient temperature

  -10°C...+70°C
  (+14°F...+158°F)
