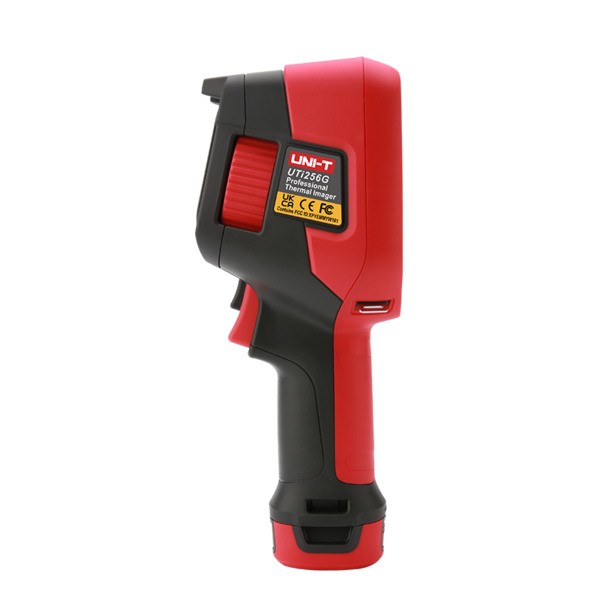

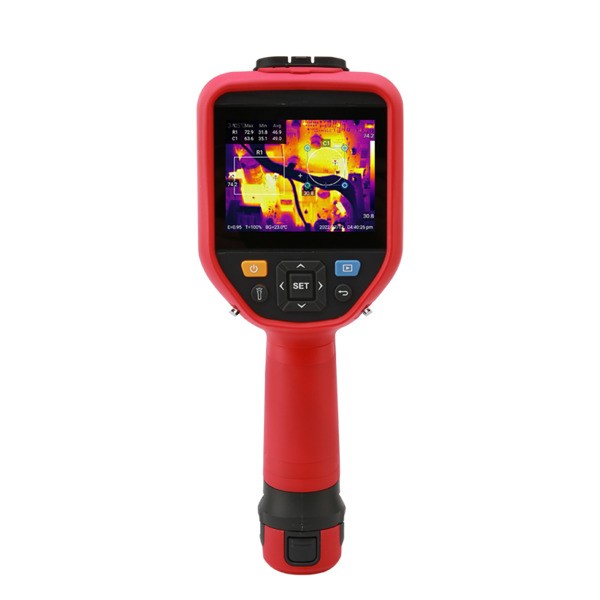

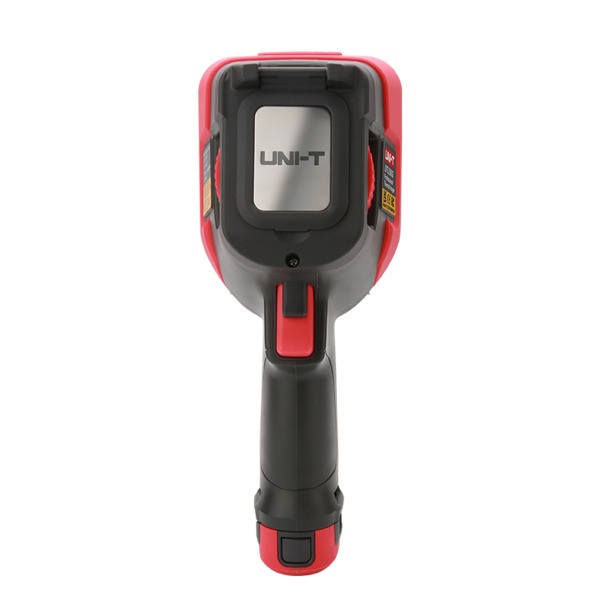

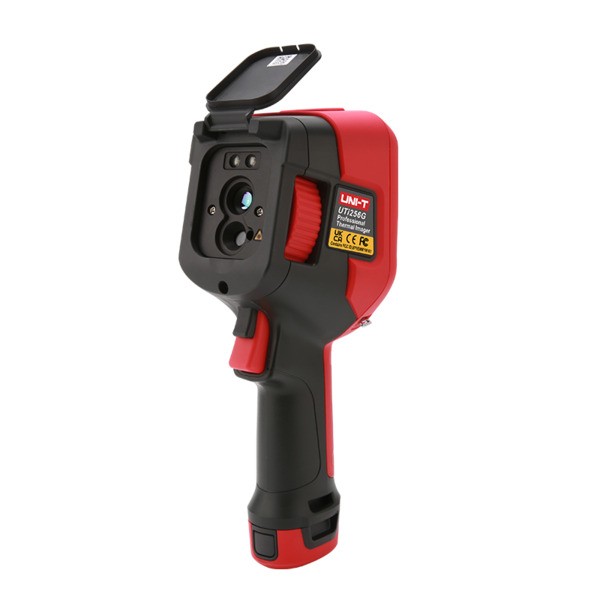

Industrial Enhanced Thermal Camera
UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer，etc. They are perfect troubleshooting tools for many industrial applications.
Features :
- 3.5″ IPS touchscreen (640×480)
- IR resolution:256×192
- Temperature measurement range: -20℃to 550℃
- On screen analyzer :3 Points/3 Lines/3 Rectangles/3 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Wi-Fi and Bluetooth connection through Mobile App
- PC software: analysis and real-time image projection
- Voice recording
- Image modes: Thermal,Visual image,Fusion,PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm: 5(Auto/Manual/Above/Below/Section)
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop proof
Specifications
| Technical Data | |
| Display | 3.5″ IPS Touch (640×480) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 7.5~14µm |
| Pixel size | 17µm |
| Frame rate | ≤30Hz |
| Thermal sensitivity(NETD) | ≤40mK |
| Focus | Manual Focus |
| Field of view(FOV) | 28°(H) × 20°(V) |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Image modes | Thermal, Visual image, Fusion, PIP |
| On screen analyzer | 3 Points/3 Lines/3 Rectangles/3 Circles |
| Isotherm | Auto/Manual/Above/Below/Section |
| Hi/Lo temperature alarm | LCD animation |
| Hi/Lo temperature tracking | √ |
| Digital camera resolution | 5MP |
| Digital zoom | 2x, 4x |
| Voice recording | √ |
| Wi-Fi / Bluetooth | √ |
| Wi-Fi live streaming | √ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 5200mAh detachable Li-ion battery pack (UT-M17) |
