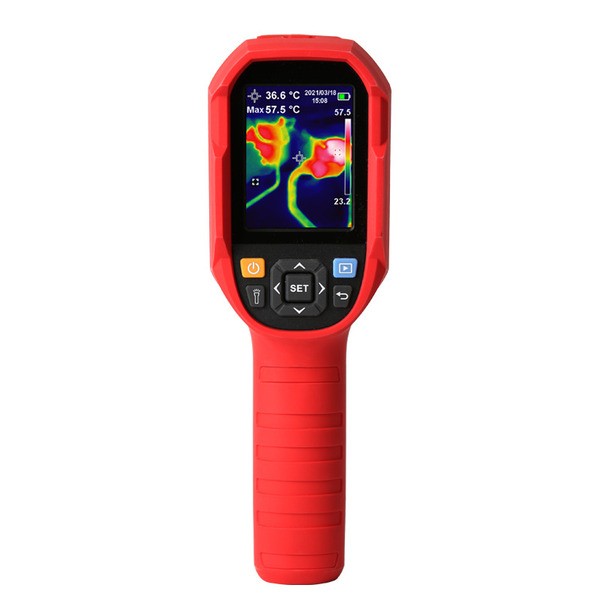

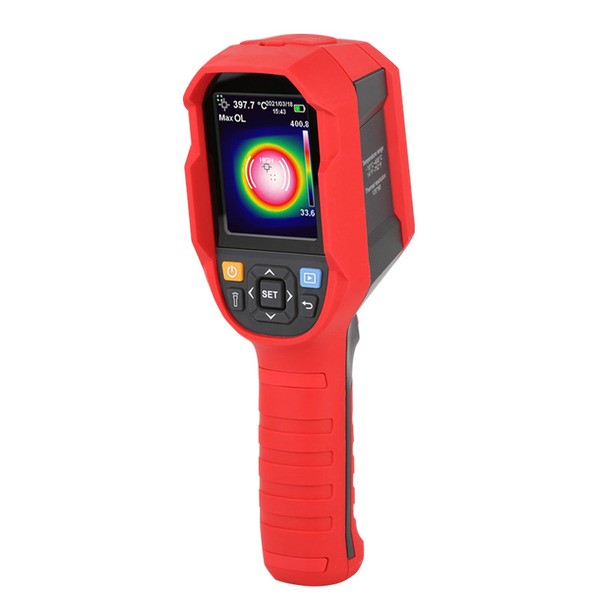

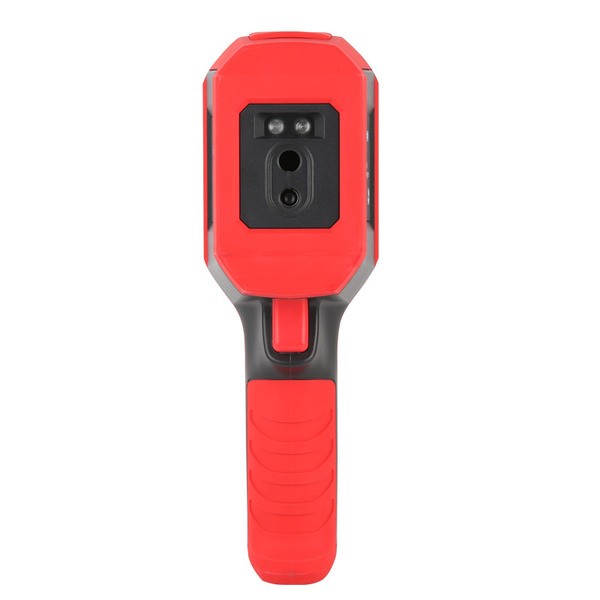

UTi120B Heavy Duty Thermal Camera

Product Item : UTi120B
Category： UNI-T
IR resolution (Pixels):120×90
Display:2.8” TFT LCD (320×240)
Field of view(FOV):50°×38°
Thermal sensitivity(NETD)≤60mK
INQUIRY EMAIL

Heavy Duty Thermal Camera

UTi120B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance and attractive price, with 120×90 pixels IR resolution which can automatically track the objective’s temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications

Features :

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 120×90
Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
Image capture
Image modess：Thermal,Visual image,Fusion
Buzzer alarm
Color palettes: 5(White hot, Black hot, Red hot, Ironbow, Rainbow)
LED flashlight
PC software analysis
Rechargeable Li-ion battery
1/4” tripod mounting hole
IP65
2m drop proof

Product Specifications of UTi120B

Technical Data
IR resolution (Pixels)	120×90
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	5 (White hot, Black hot, Red hot, Ironbow, Rainbow)
Image modes	Thermal,Visual image,Fusion
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon,LED flashlight,Buzzer
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton
